DC12V 30A CCTV Power Supplies

DC12V 30A CCTV Power Supplies

  • DC12V 30A CCTV Power Supplies
  • DC12V 30A CCTV Power Supplies
  • DC12V 30A CCTV Power Supplies
  • DC12V 30A CCTV Power Supplies
DC12V 30A CCTV Power Supplies
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ETB123018
پرداخت:
Minimum Order Quantity: 500 Pcs
قیمت: Negotiable
Packaging Details: Inside white box/color box, outside master carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
Application: CCTV, Distribution Box Approval: CE, UL
EMI: EN55011 Class B, EN55022 Class B Feature: High Voltage, Regulated, 18 Channel, LED
Frequency: 50Hz / 60Hz Input: AC100-240V
Output: DC12V Output Power: 360W
Product Name: CCTV Power Supplies Protection: Short Circuit, Over Voltage, Over Current
Supply Current: 1.1Amp
برجسته:

cctv camera power supply,cctv power supply box

,

cctv power supply box



DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel





Quick Detail:


1. Power ON/OFF switch

2. Stable performance, high efficiency

3. AC power LED indicator

4. Unit maintains camera synchronization

5. Easy installation saves time and eliminates costly labor

6. PTC Fuse with fuse rating of 1.1Amp

7.Regulated and filtered unit.







Description:

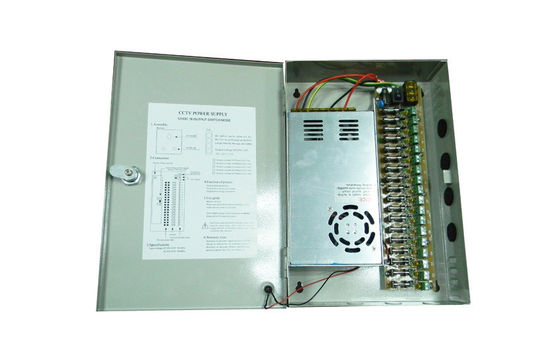

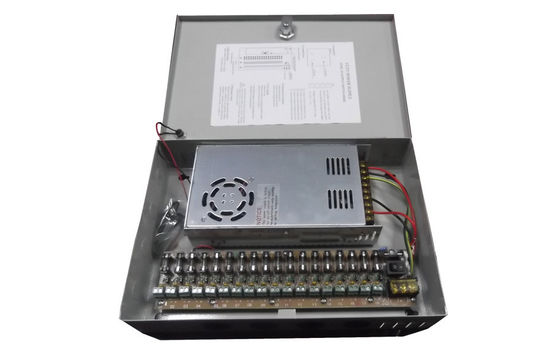

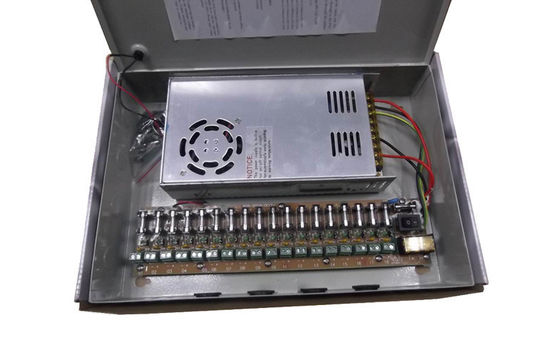

12V ,30A, 18Channel boxed CCTV power supply for CCTV Cameras.

This camera power supply distribution box will give you a different impression. It offers a more professional alternative to individual power adapters, and features separate spaces for low voltage and high voltage operation so as to protect itself from high voltage damages. To our products, our company is committed to bringing you affordable prices and top quality of our products, they tend to sell out quickly, so if some items you are interested in are out of stock, please contact us



-It offers a more professional alternative to individual power adapters

-Support up 18 cameras

-Individual LED power indication, the red light shorts indicator helps you know which camera is not working

-Main power switch with integral surge protection

-Individual PTC reset-able fuses output protection

-Separate spaces for low voltage and high voltage operation to protect from high voltage damages

-Metal covered case with lock

-Mounting flange design allows easy wall mounting





Applications:



Boxed CCTV power supply can be widely used for indoor security cameras such as IP Cameras, Wireless CCTV Cameras, DVR, Hidden Cameras etc.





Specifications:



Max output power

360W

Input

Input Voltage

AC100-240V

Input Voltage Frequency

50/60Hz

Input Current

Max.2.0A

Efficiency

>85%

Inrush Current

Cold Start Curren 40A/240Vac

Leakage Current

<1.4mA/240VAC

Output

Output Voltage

DC12V

Total Output Current

20A(1700mA/CH, 18 Channels for 18 sets security camera)

Output Ripple

Noise(Vp-p)

80mVp-p@25℃/

Rated input voltage & Rated output load

Fuse Type

Glass fuse

Fuse Rating

2.5 Amps/250VAC

Start time, rise time, hold on

1000ms,30ms,50ms/240VAC.

Protection

Short Circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

High Voltage Protection

When over voltage occurs, it will switch to self-protection status to

protect the load.

Over Current Protection

When over current occurs,

the corresponding

channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Circumstances

Working Temperature

0℃-+50℃

Storage Temperature

-20℃-+80℃

RH

20%-90%

Heat Release

Natural heat dissipation

Dielectric strength

Input to output

1500Vac/60S  leakage current≤1.5mA

Input to FG

1500Vac/60S  leakage current≤2.0mA

FG to output

500Vac/60S   leakage current≤1.5mA

Insulating Strength

Input to output

≥20MΩ/500VDC@25℃

RG

≤0.011Ω@DC8V/25A/25℃

Safety EMC

Safety Standards

UI60950 EN60950

EMI

EN55011 class B

EN55022 class B

EMS Immunity

EN55024 EN61000-6-2

Harmonic Current

EN61000-3-2





Competitive Advantage:



-100~240VAC Worldwide Input Voltage range;

-Compact design, light weight and high efficiency;

-Short Circuit Protection, Over Current Protection, Over Load Protection;

-Customer design model;

-Factory direct price w/o middle man;

-0.3% backup of order quantity free of charge.
