12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B

12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B

  • 12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B
  • 12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B
  • 12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B
  • 12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B
12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ETB122018
پرداخت:
Minimum Order Quantity: 500 Pcs
قیمت: Negotiable
Packaging Details: Inside white box/color box, outside master carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
Application: CCTV|Distribution Box Approval: CE|UL
EMI: EN55011 Class B|EN55022 Class B Feature: High Voltage|18 Channel|LED|9 Channel
Frequency: 50Hz / 60Hz Input: AC100-240V
Output: 12VDC Output Power: 240W
Product Name: CCTV Power Supplies Protection: Short Circuit|Over Voltage|Over Current
Supply Current: 20Amp
برجسته:

cctv camera power supply,switch mode power supply

,

switch mode power supply



12V 20Amps CCTV Power Supplies Box AC100-240V 240W With EN55022 Class B





Quick Detail:

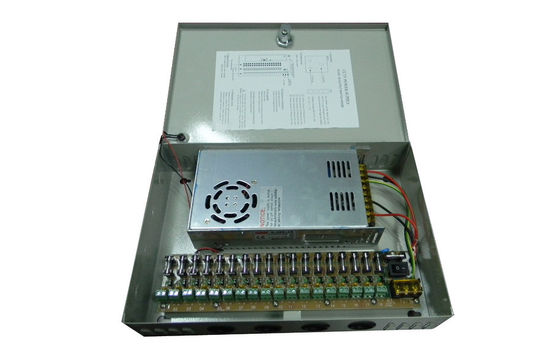

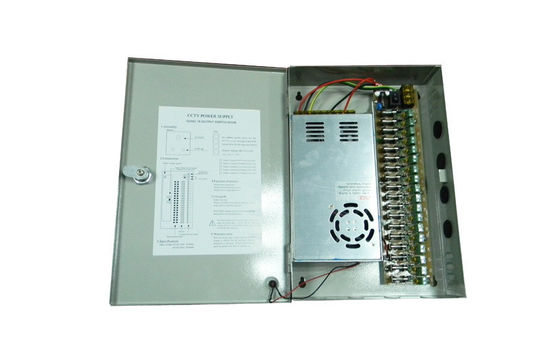

This is metal cabinet power supply distribution box which is designed for CCTV cameras. The power supply supports AC inputs from 100V to 240V, it works in Japan to the outback of Australia without any adjustment. it comes with DC outputs 12V 20Amp. This is 18 channel power supply box, support connecting up to 18 traditional CCTV cameras.

This is switching power supply, which regulates the energy level and ensures continuous working of the system without recharging or refueling. The 9 channel power supply box supports short circuit, over current, over temperature and over voltage protection. It's un-interrupted power system for your video surveillance cameras.

This power supply box mainly used in video surveillance system, industry, machine equipment, LED display, telecommunication...etc





Description:



12VDC 20A 18CH for 9 out premium CCTV power supply unit.

The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.





Applications:



Boxed CCTV power supply can be widely used for indoor security cameras such as IP Cameras, Wireless CCTV Cameras, DVR, Hidden Cameras etc.





Specifications:



Max output power

240W

Input

Input Voltage

AC100-240V

Input Voltage Frequency

50/60Hz

Input Current

Max.2.0A

Efficiency

>85%

Inrush Current

Cold Start Curren 40A/240Vac

Leakage Current

<3.5mA/240VAC

Output

Output Voltage

DC12V

Total Output Current

20A(1100mA/CH, 18 Channels for 18 sets security camera)

Output Ripple

Noise(Vp-p)

80mVp-p@25℃/

Rated input voltage & Rated output load

Fuse Type

Glass fuse

Fuse Rating

1.5 Amps/250VAC

Start time, rise time, hold on

1000ms,30ms,50ms/240VAC.

Protection

Short Circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

High Voltage Protection

When over voltage occurs, it will switch to self-protection status to

protect the load.

Over Current Protection

When over current occurs,

the corresponding

channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Circumstances

Working Temperature

0℃-+50℃

Storage Temperature

-20℃-+80℃

RH

20%-90%

Heat Release

Natural heat dissipation

Dielectric strength

Input to output

1500Vac/60S  leakage current≤1.5mA

Input to FG

1500Vac/60S  leakage current≤2.0mA

FG to output

500Vac/60S   leakage current≤1.5mA

Insulating Strength

Input to output

≥20MΩ/500VDC@25℃

RG

≤0.011Ω@DC8V/25A/25℃

Safety EMC

Safety Standards

UI60950 EN60950

EMI

EN55011 class B

EN55022 class B

EMS Immunity

EN55024 EN61000-6-2

Harmonic Current

EN61000-3-2





Competitive Advantage:



-100 ~ 240VAC Worldwide Input Voltage range;

-Compact design, light weight and high efficiency;

-Short Circuit Protection, Over Current Protection, Over Load Protection;

-Customer design model;

-Factory direct price w/o middle man;

-0.3% backup of order quantity free of charge.
