18 Channel CCTV Power Supplies

18 Channel CCTV Power Supplies

    • 18 Channel CCTV Power Supplies
    • 18 Channel CCTV Power Supplies
    • 18 Channel CCTV Power Supplies
    • 18 Channel CCTV Power Supplies
  • 18 Channel CCTV Power Supplies

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ETB2410-1210-18


    Minimum Order Quantity: 500 Pcs
    قیمت: Negotiable
    Packaging Details: Inside white box/color box, outside master carton
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Application: CCTV, Distribution Box Approval: CE, RoHS, UL
    EMI: EN55011 Class B, EN55022 Class B Feature: High Voltage, 18 Channel, LED
    Frequency: 50Hz / 60Hz Input: AC100-240V
    Output: 12VDC Output Power: 400W
    Plug: US, BR Product Name: CCTV Power Supplies
    Protection: Short Circuit, Over Voltage, Over Current Supply Current: 13Amp


    18 Channel CCTV Power Supplies 12VDC 400W 13Amp With CE Certified



    Quick Detail:


    -Input: 110VAC or 220VAC, 1 in 18 Out Power Distribution Box (18 channels)

    -Output: 12 Volt DC and 24V AC 400W

    -12VDC and 24VAC in one box

    -Supply Current: 13 Amp and 10 Amp

    -Max. Amp: 1.85Amp/Channel

    -18 individually PTC auto-reset fuses protected outputs with LED

    -Over voltage, over current, short-circuit, and surge protections

    -On/off safety power switch with LED indicator

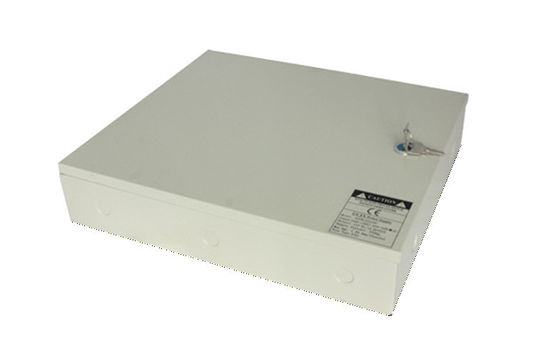

    -Beige metal housing

    -Dependable and long lasting

    -Approvals: CE/RoHS

    -Size: 380mm (L) x 330mm (W) x 85mm (D)





    400W 12VDC and 24VAC 18 Channel CCTV Power Supply for CCTV Camera System.1 in 18 Out CCTV Power Supply(9 Channels of 12VDC and 9 Channels of 24VAC)

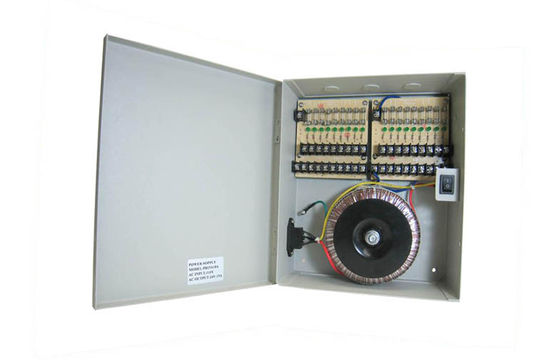

    The AC/DC combo power distribution box powers up to9 of your 24 Volt AC devices and 9 of your 12 Volt DC devices, totaling up to 18 ports. This unit conveniently allows the connection of both AC and DC devices. Each of the 18 power outputs includes its own individual fuse and LED light for monitoring the power status, dependable, simple, and convenient.





    1) Suitable for industrial equipment, security monitoring.

    2) Suitable for LED billboard, LED lighting.

    3) Suitable for medical treatment, CCTV camera power supply.

    4) Widely used in any other area.





    Max output power



    Input Voltage


    Input Voltage Frequency


    Input Current




    Inrush Current

    Cold Start Curren 40A/240Vac

    Leakage Current



    Output Voltage

    12VDC±5% & 24VAC±5%

    Total Output Current

    DC13A, 9 channels & AC10A, 9 channels

    Output Ripple



    Rated input voltage & Rated output load

    Fuse Type

    Glass fuse

    Fuse Rating

    PTC 1.85A/60V

    Start time, rise time, hold on



    Short Circuit Protection

    When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

    High Voltage Protection

    When over voltage occurs, it will switch to self-protection status to

    protect the load.

    Over Current Protection

    When over current occurs,

    the corresponding

    channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.


    Working Temperature


    Storage Temperature




    Heat Release

    Natural heat dissipation

    Dielectric strength

    Input to output

    1500Vac/60S  leakage current≤1.5mA

    Input to FG

    1500Vac/60S  leakage current≤2.0mA

    FG to output

    500Vac/60S   leakage current≤1.5mA

    Insulating Strength

    Input to output




    Safety EMC

    Safety Standards

    UI60950 EN60950


    EN55011 class B

    EN55022 class B

    EMS Immunity

    EN55024 EN61000-6-2

    Harmonic Current




    Competitive Advantage:


    -100~240VAC Worldwide Input Voltage range;

    -Compact design, light weight and high efficiency;

    -Short Circuit Protection, Over Current Protection, Over Load Protection;

    -Customer design model;

    -Factory direct price w/o middle man;

    -0.3% backup of order quantity free of charge.
