DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel

DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel

    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
    • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel
  • DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ETB123018

    پرداخت:

    Minimum Order Quantity: 500 Pcs
    قیمت: Negotiable
    Packaging Details: Inside white box/color box, outside master carton
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    name: CCTV Power Supplies output: 360W
    EMI: EN55011 Class B|EN55022 Class B Feature: High Voltage|Regulated|18 Channel|LED
    Frequency: 50Hz / 60Hz Input: AC100-240V
    Output: DC12V feature 1: led power charger
    feature 2: cctv power supply feature 3: led power adapter



    DC12V 30A Regulated CCTV Power Supplies Distribution Box , 18-Channel





    Quick Detail:


    1. Power ON/OFF switch

    2. Stable performance, high efficiency

    3. AC power LED indicator

    4. Unit maintains camera synchronization

    5. Easy installation saves time and eliminates costly labor

    6. PTC Fuse with fuse rating of 1.1Amp

    7.Regulated and filtered unit.







    Description:

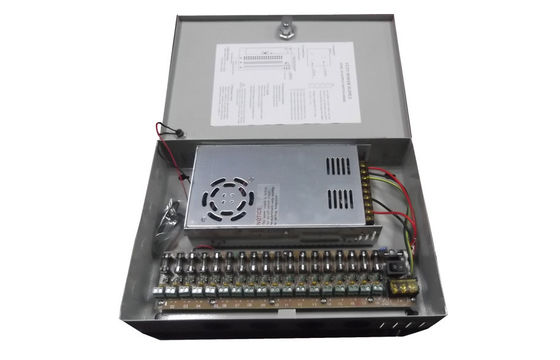

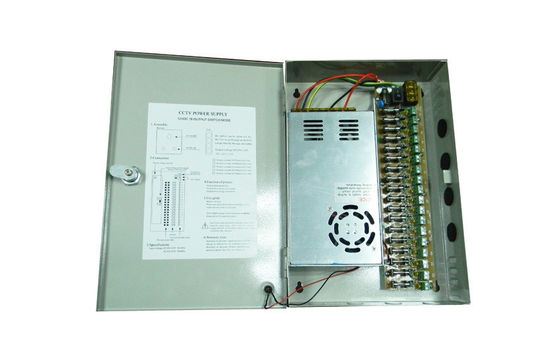

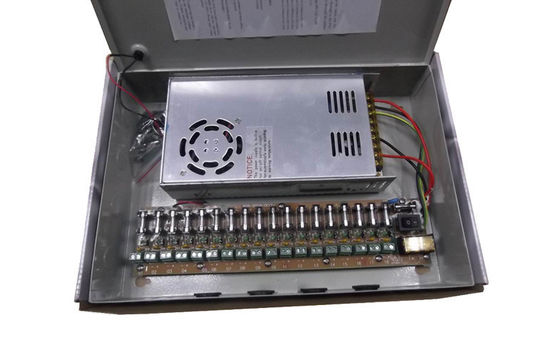

    12V ,30A, 18Channel boxed CCTV power supply for CCTV Cameras.

    This camera power supply distribution box will give you a different impression. It offers a more professional alternative to individual power adapters, and features separate spaces for low voltage and high voltage operation so as to protect itself from high voltage damages. To our products, our company is committed to bringing you affordable prices and top quality of our products, they tend to sell out quickly, so if some items you are interested in are out of stock, please contact us



    -It offers a more professional alternative to individual power adapters

    -Support up 18 cameras

    -Individual LED power indication, the red light shorts indicator helps you know which camera is not working

    -Main power switch with integral surge protection

    -Individual PTC reset-able fuses output protection

    -Separate spaces for low voltage and high voltage operation to protect from high voltage damages

    -Metal covered case with lock

    -Mounting flange design allows easy wall mounting





    Applications:



    Boxed CCTV power supply can be widely used for indoor security cameras such as IP Cameras, Wireless CCTV Cameras, DVR, Hidden Cameras etc.





    Specifications:



    Max output power

    360W

    Input

    Input Voltage

    AC100-240V

    Input Voltage Frequency

    50/60Hz

    Input Current

    Max.2.0A

    Efficiency

    >85%

    Inrush Current

    Cold Start Curren 40A/240Vac

    Leakage Current

    <1.4mA/240VAC

    Output

    Output Voltage

    DC12V

    Total Output Current

    20A(1700mA/CH, 18 Channels for 18 sets security camera)

    Output Ripple

    Noise(Vp-p)

    80mVp-p@25℃/

    Rated input voltage & Rated output load

    Fuse Type

    Glass fuse

    Fuse Rating

    2.5 Amps/250VAC

    Start time, rise time, hold on

    1000ms,30ms,50ms/240VAC.

    Protection

    Short Circuit Protection

    When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

    High Voltage Protection

    When over voltage occurs, it will switch to self-protection status to

    protect the load.

    Over Current Protection

    When over current occurs,

    the corresponding

    channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

    Circumstances

    Working Temperature

    0℃-+50℃

    Storage Temperature

    -20℃-+80℃

    RH

    20%-90%

    Heat Release

    Natural heat dissipation

    Dielectric strength

    Input to output

    1500Vac/60S  leakage current≤1.5mA

    Input to FG

    1500Vac/60S  leakage current≤2.0mA

    FG to output

    500Vac/60S   leakage current≤1.5mA

    Insulating Strength

    Input to output

    ≥20MΩ/500VDC@25℃

    RG

    ≤0.011Ω@DC8V/25A/25℃

    Safety EMC

    Safety Standards

    UI60950 EN60950

    EMI

    EN55011 class B

    EN55022 class B

    EMS Immunity

    EN55024 EN61000-6-2

    Harmonic Current

    EN61000-3-2





    Competitive Advantage:



    -100~240VAC Worldwide Input Voltage range;

    -Compact design, light weight and high efficiency;

    -Short Circuit Protection, Over Current Protection, Over Load Protection;

    -Customer design model;

    -Factory direct price w/o middle man;

    -0.3% backup of order quantity free of charge.
