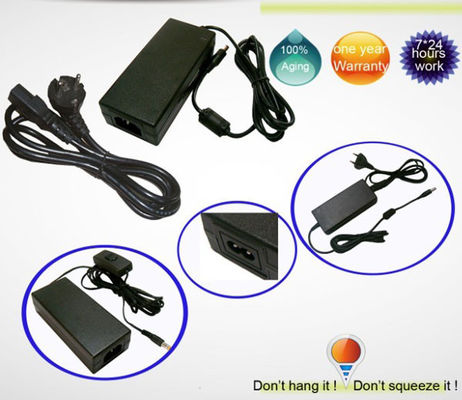

120W 19V 6.32A Laptop Power Adapter For Toshiba Satellite A / L500 M505

جزئیات محصول:

Place of Origin:	China
نام تجاری:	VOTOO
گواهی:	CE,ROHS
Model Number:	VP-1906320

پرداخت:

Minimum Order Quantity:	100pcs
قیمت:	negotiation
Packaging Details:	white box
Delivery Time:	5-10 days
Payment Terms:	Ex works
Supply Ability:	1, 000, 000PCS/week

مخاطب

توضیحات محصول جزئیات

برجسته:

power supply adapter, laptop ac adapter power cord

laptop ac adapter power cord

120W 19V 6.32A Laptop Power Adapter For Toshiba Satellite A / L500 M505

Quick Detail:

New Laptop Power Adapter for Toshiba Satellite A505 L500 M505 120W 19V 6.32A
Material: ABS+PC
No load power consumption< 0.3W
100% full load burn-in test
Protections: Short circuit / Over load
OEM & ODM
1 year warranty

Description:

Features:

1. Usage :AC Adapter for laptop

2. Input :AC 100V - 240V

3. Input Frequence :50-60Hz
4. Output :DC 19V 6.32A

5. Output Power :120W

6. Connecter size :5.5*2.1mm

7. Line regulation (full load): ±0.5%
8. Peak- to -peak ripple: < 100MV
9. Working temperature: 0-35°C@100%,50°C@70% load
10. Setup rise hold up time: 100ms,50ms,20ms@240VAC input
11. Strong made totally compatible part
12. Over voltage protection: 115%-135% rated output voltage
13. Withstand voltage: I/P-O/P 3Kvac,1 minute
14. Over load protection: 115%-135% fold back current limiting, Auto-recovery

o Universal Input 100~240VAC 50/60Hz

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

Specification:

Input voltage	AC 100-240V, 50/60HZ Worldwide Use
Plug	EU/US/AU/UK/Italy/South Africa/Brazil etc for your selection
Protection	short circuit, open circuit, over current, over voltage protection, over temperate protection
Quality	High quality, low defective rate, brand new
Package	white paper box
Package content	1x adapter or with ac power cord
Warranty	12 months
Quality Guarantee	100% more than 2 Hour Burn-In Test 100% 4 times electrical performance test 100% dropping test from 6 surface 100% Solder ball vibration test 100% Hi-Pot Test
Customer Service:	1. Free Sample for Customer 2. Accept Customize Label 3. Welcome Trial Order 4. Place bad products with new items in next order. 5. Print customer's logo on adapter case 6. Good quality only from our factory, welcome to visit us. 7. Professional advice for your any questions. (Such as shipping, package, price, product details)

1. Strictly 100% full load testing and aging testing

2. Withstand 3000v high voltage

3. 12 months warranty, during warranty time, recomplenish the defaulted
products without any additional cost.

4. OEM & ODM Service Acceptable
5. Convinient to travel around the world
6. Fast delivery with good quality

How to Install?

Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
The power supply should be installed in a location with good airflow.
Power supply can only be installed indoors.
AC wire should connect tight with adapter socket, in case poor contact socket.
