40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus
Quick Detail:
Universal laptop adapter 40W, manual output voltage9.5-20V, for Mini Notebook and Netbook.
Specs:
Input: AC100-240V, 1.2A max.
Output: DC9.5/12/16/18/20V, 2.0A
Power Cord:
AC Cable: 2x0.75mm2, flat, length: 1.2M
DC Cable: 20AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
- High efficiency, up to 85%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years

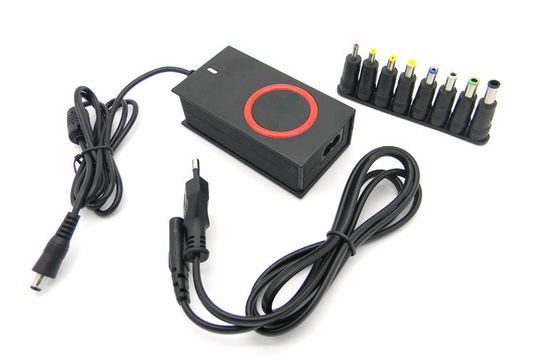

Contents: 1 Adapter + 1AC Cable+1DC Cable +7 Connectors
Description:

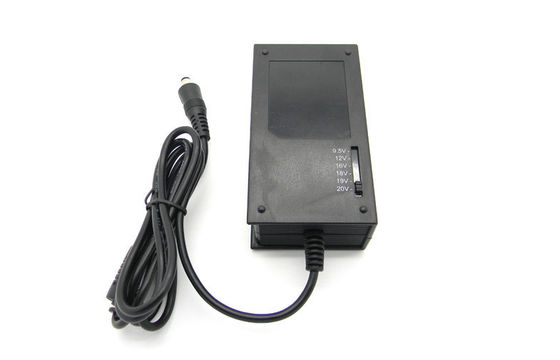

This is an universal laptop AC adapter come with unique design and 7 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Gateway, Lenovo etc. The users can adjust the slider on the back of the adapter to get 6 different output voltage 9.5/12/16/18/19/20V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.
Note: please select correct output voltage before connecting the adapter with your laptops.
Applications:
used for most top brand notebooks and netbooks as external power supply, easy to charge your laptops during travel and at home.
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Input AC Current
|
1.2A
|
|
Inrush Current
|
30A
|
|
Output
|
Rated Output Voltage
|
DC 9.5~20V
|
|
Output Voltage
|
DC9.5/12/16/18/19/20V
|
|
Rated Output Current
|
2.0A
|
|
Rated Power
|
Max.40W
|
|
Ripple and Noise
|
120mV p-p
|
|
Standby Power Consumption
|
0.5W
|
|
Turn-on
|
5s
|
|
Hold-up
|
20s
|
|
Over Voltage Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Short Circuit Protection
|
Yes, automaically recover after short circuit removed.
|
|
Reliability
|
Hi-pot
|
3000Vac
|
|
Insulation Resistance
|
Input to output at 500Vdc
|
|
Leakage Current
|
5mA
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 12 hours
|
|
Drop Test
|
6 direction, each one time from height 1.0M
|
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
Operating Humidity
|
10~80%
|
|
Storage Temperature
|
-20~65℃
|
|
Storage Humidity
|
0~90%
|
|
Safety Approvals
|
CE, RoHS, FCC, UL, SAA
|
|
Warranty
|
2 Years
|
Competitive Advantage:
- Open private model w/o extra cost for you, we can help you realize good ideas into products.
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sale service
