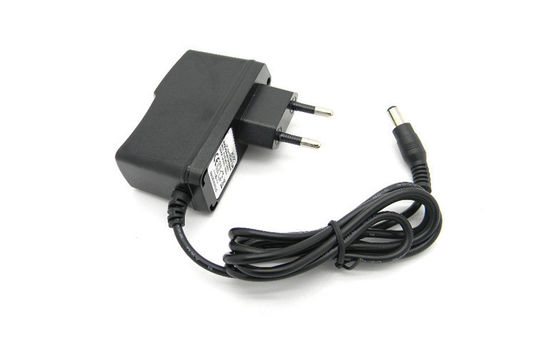

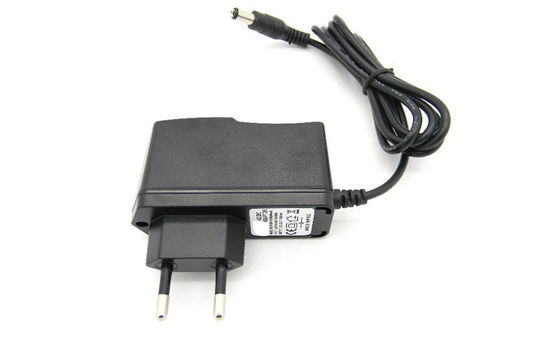

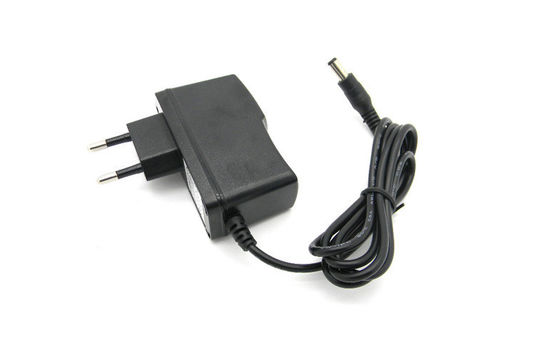

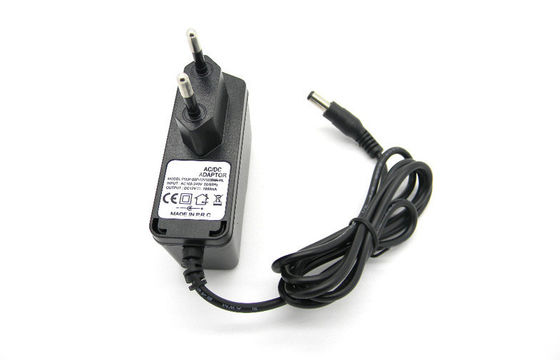

10Watt Switching AC To DC Power Adapter Wall Mount For SATA

10Watt Switching AC To DC Power Adapter Wall Mount For SATA

    • 10Watt Switching AC To DC Power Adapter Wall Mount For SATA
    • 10Watt Switching AC To DC Power Adapter Wall Mount For SATA
    • 10Watt Switching AC To DC Power Adapter Wall Mount For SATA
    • 10Watt Switching AC To DC Power Adapter Wall Mount For SATA
  • 10Watt Switching AC To DC Power Adapter Wall Mount For SATA

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ET0500200

    پرداخت:

    Minimum Order Quantity: 2K
    قیمت: Negotiable
    Packaging Details: PE Bag, Master Carton, Customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    AC Cable: 1.2M Application: Printer, ADSL, SATA
    Approval: CE, RoHS, FCC, UL, SAA Cable Material: Copper
    DC Cable: 1.2M EMI Standards: FCC Part 15B
    Feature: High Efficency Input: AC100-240V
    Operating Temperature: 0~40℃ Output: DC5V
    Output Power: 10Watt Plug: EU, US, UK, SAA, CCC
    Product Name: AC To DC Power Adapter Protection: Short Circuit, Over Voltage, Over Current



    10Watt Switching AC To DC Power Adapter Wall Mount For SATA



    Quick Detail:



    10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.





    specs:



    Input: AC100-240V, 1.2A max.

    Frequency: 50/60Hz

    Output: DC5V, 2000mA

    DC Cable: 22AWG, Copper, length: 1.2M

    Plug: EU, UK, US, SAA, CCC

    Tip: 5.5x2.1mm (optional)



    Approval: CE, RoHS, FCC, UL, SAA

    Warranty: 2 years



    Description:



    This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.



    Note:



    indoor use only.





    Applications:



    widely used for LED light, SATA, ADSL, digital photo frame, printer etc.





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    0.2A

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC5V

    Rated Output Current

    2000mA

    Rated Power

    10W

    Ripple and Noise

    120mV p-p

    Standby Power Consumption

    0.3W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 4 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    2 Years





    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man.

    -High performance-to-price ratio;

    -Perfect after-sale service
