High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

جزئیات محصول:

Place of Origin:	Shenzhen,China
نام تجاری:	RAYTOP
گواهی:	CE, RoHS, FCC
Model Number:	RT-MPA03123000A

پرداخت:

Minimum Order Quantity:	100 PCS
قیمت:	Negotiable
Packaging Details:	Color box, 200PCS/Carton
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs monthly.

مخاطب

توضیحات محصول جزئیات

Product Name:	3-12V Universal AC/DC Adapter	Input:	AC100-240V, 50/60Hz, 1.0A
Output:	3.0/4.5/5.0/6.0/9.0/12.0VDC	Current:	Max. 2500mA
AC Plug:	EU,US, UK,SAA,CCC	DC Cable:	24AWG, 1.2M
Protection:	Short Circuit, Over Voltage,Over Current
برجسته:	Wall Mount Power Supply, ac to dc power converter , ac to dc power converter

High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

Quick Detail:

Switching mode power adapter with multiple rated output voltage DC 3.0

/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many devices such as Router, POS System, Security Cameras, Tablets etc.

Specs:

Input: AC100-240V, 1.0A max.

Frequency: 50/60Hz

Output: DC3/5.0/6.0/7.5/9.0/12.0V

Output Current: 2500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, CCC,US, SAA and other standards plugs

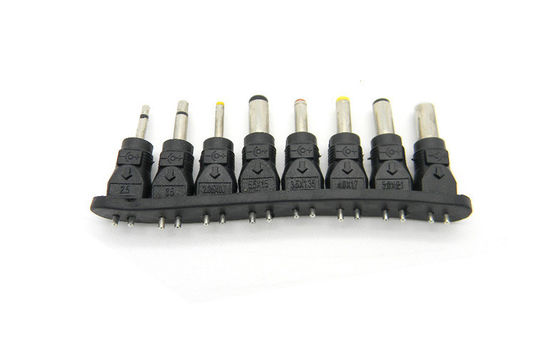

8 different size tips.

Features:

-High efficiency:>83%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

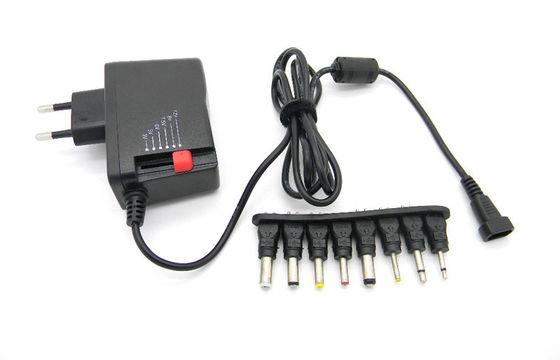

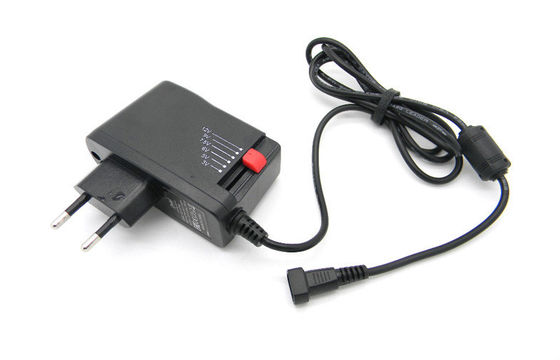

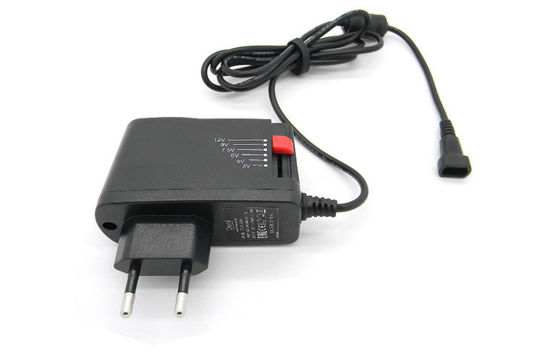

This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. The users can adjust the red switch slip to get the needed working voltage.

Note: in door use only.

Applications:

Widely used for Router, POS System, Security Cameras, Tablets etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	300mA
	Inrush Current	30A
Output	Rated Output Voltage	DC3/5/6/7.5/9/12V
	Rated Output Current	2500mA
	Rated Power	30W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
