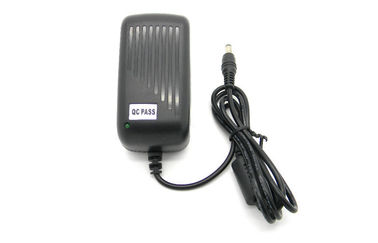

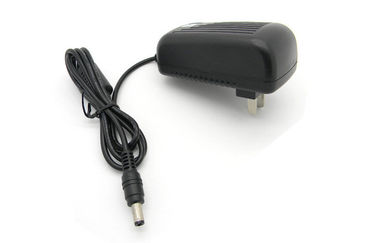

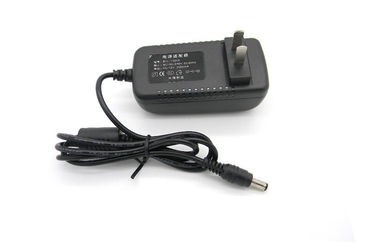

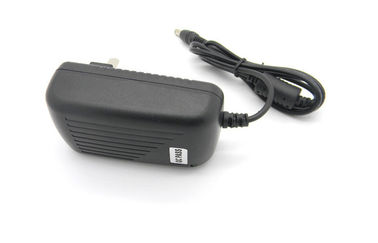

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

    • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
    • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
    • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
    • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
    • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ET1200200

    پرداخت:

    Minimum Order Quantity: 2K
    قیمت: Negotiable
    Packaging Details: PE Bag, Master Carton, Customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    name: Switching Power Adapter 12V Place of Origin: Shen Zhen ,Guang Dong,China
    گواهی: UL/cUL/FCC/GS(LVD)/CE/EMC/PSE/3C/MEPS/BSMI/RCM/EUP CEC/Energy Star DC Cable: 1.2M
    Output: 12V 2A Feature: switch adapter 12v
    Input: AC100-240V Operating Temperature: 0~40℃
    application: EU|US|UK|SAA|CCC



    High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper





    Quick Detail:



    Switching mode power adapter, DC12V 2A, Wall mount in conformity with CE, RoHS, FCC certification.





    Specs:



    Input: AC100-240V, 1.2A max.

    Frequency: 50/60Hz

    Output: DC12V, 2A

    DC Cable: 22AWG, Copper, length: 1.2M

    Plug: EU, UK, US, SAA, CCC





    Features:



    -High efficiency:>82%;

    -Protection: Short circuit protection, over voltage protection, over current protection.

    -MTBF: 50,000 hours.





    Approval: CE, RoHS, FCC

    Warranty: 2 years





    Description:



    This is an universal AC/DC adapter come with single output tip 5.5x2.1x10mm, mainly for CCTV security camera application. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





    Note:



    indoor use only





    Applications:



    used for CCTV security camera.





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    0.2A

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC12V

    Rated Output Current

    2000mA

    Rated Power

    24W

    Ripple and Noise

    150mV p-p

    Standby Power Consumption

    0.5W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 4 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    2 Years





    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man.

    -High performance-to-price ratio;

    -Perfect after-sale service
