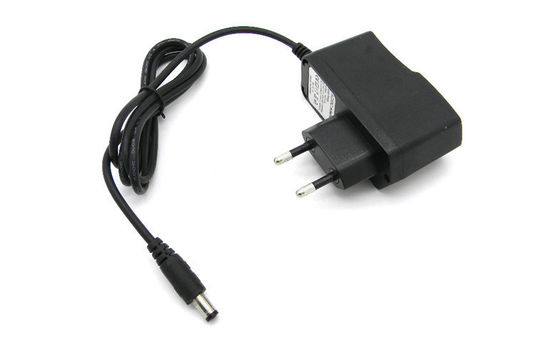

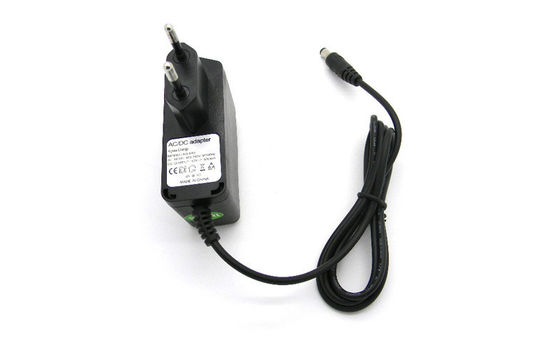

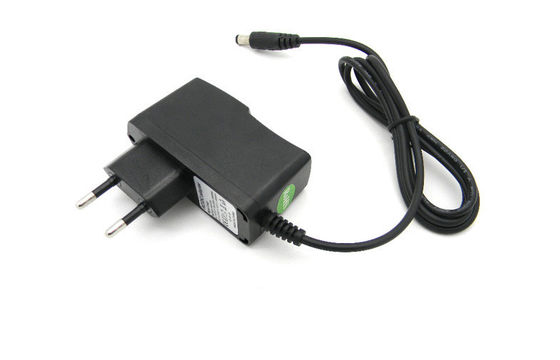

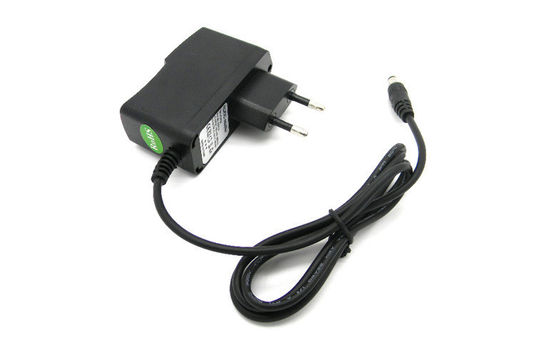

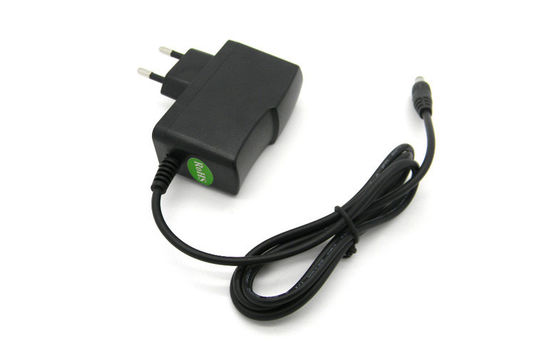

12V 500mA Wall Mount Power Adapter

12V 500mA Wall Mount Power Adapter

    • 12V 500mA Wall Mount Power Adapter
    • 12V 500mA Wall Mount Power Adapter
    • 12V 500mA Wall Mount Power Adapter
    • 12V 500mA Wall Mount Power Adapter
    • 12V 500mA Wall Mount Power Adapter
  • 12V 500mA Wall Mount Power Adapter

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ET1200500

    پرداخت:

    Minimum Order Quantity: 2K
    قیمت: Negotiable
    Packaging Details: PE Bag, Master Carton, Customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    AC Cable: 1.2M Application: Telephones
    Approval: CE, RoHS, FCC, UL, SAA Cable Material: Copper
    DC Cable: 1.2M EMI Standards: FCC Part 15B
    Feature: Impact Resistance Frequency: 50Hz / 60Hz
    Input: AC100-240V MTBF: 50000 Hours
    Operating Temperature: 0~40℃ Output: 12V
    Output Power: 6W Plug: EU, US, UK, SAA, CCC
    Product Name: AC To DC Power Adapter Protection: Short Circuit, Over Voltage, Over Current



    12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones





    Quick Detail:



    12V,500mA Wall mount power adapter, tip 5.5x2.1mm, with CE, RoHS, FCC, UL, SAA certificates. DC cable 24AWG, 1.2M length for different kinds of electronic devices usage.





    Specs:



    Input: AC100-240V, 300mA max.

    Frequency: 50/60Hz

    Output: DC12V, 500mA

    DC Cable: 22AWG, Copper, length: 1.2M

    Plug: EU, UK, US, SAA, CCC





    Features:



    -High efficiency:>82%;

    -Protection: Short circuit protection, over voltage protection, over current protection.

    -MTBF: 50,000 hours.

    -Compact design, light weight, easy to carry.





    Approval: CE, RoHS, FCC

    Warranty: 2 years





    Description:



    This is an universal AC adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





    Note:



    indoor use only.





    Applications:



    used for radio, wireless telephone, CD, DVD devices, interphone, electronic organ etc.





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    0.3A

    Inrush Current

    30A

    Output

    Rated Output Voltage

    DC12V

    Rated Output Current

    500mA

    Rated Power

    6W

    Ripple and Noise

    150mV p-p

    Standby Power Consumption

    0.3W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.

    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 4 hours

    Drop Test

    6 direction, each one time from height 1.0M

    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC, UL, SAA

    Warranty

    2 Years





    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man.

    -High performance-to-price ratio;

    -Perfect after-sale service
