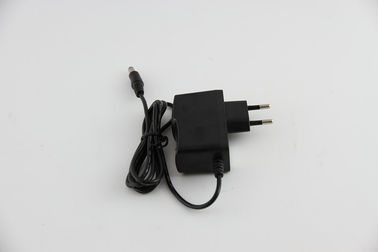

12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter

12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter

12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter

جزئیات محصول:

Place of Origin: Shenzhen China
نام تجاری: DongDaHua
گواهی: CE & ROSH
Model Number: A-24-12CE

پرداخت:

Minimum Order Quantity: 50pcs
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 8000 Pieces/Day
اکنون تماس بگیرید
توضیحات محصول جزئیات



12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter





Quick detail:



Power: 12W

Input: AC 100-240V/50/60Hz

Output: DC 12V 1A

Size: 75*29*43

Warranty: 2 years

Certificate: CE&ROHS





Description:



1. Universal AC input range

2. Protection: short-circuit/overload

3. Natural air-cooled

4. LED power indicator

5. 100% full-load aged

6. Passes 5G vibration test

7. High efficiency, long life-span and high reliability





Specifications:



Product Electric Parameters

Input specification

Input voltage

AC110V---220V

Input frequency

50-60Hz

Input surge

20A@120VAC 40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

≦1S(input230V Io=100%)

keep time

≧20mS (input230V, Io=100%)

Voltage regulation

(Full load) ≦0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, EN60950-1 standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

85(L)*43(W)*30(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.145KG/PCS








Application:



It’s suitable for an extremely wide range of applications, including:

LED, CCTV camera;

Communications and security products;

LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.



24 Watt Full Range 220 AC To DC Power Adapters 12V DC For LCD display , AC DC Adapter





Competitive Advantage:



1.built-in EMI filter

2.100% load test

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage,  over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working  no trouble >50, 000 hours





Quality assurance:



12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter




Our service:


12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter




Delivery:


12W DC12V 1A Full Power Standard Indoor Wall-Mounting LED Power Adapter
