UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Meanwell
گواهی:	CE,ROHS, TUV, UL
Model Number:	CEN-60 Single Output LED Power Supply

پرداخت:

Minimum Order Quantity:	Negotiable
قیمت:	Negotiable
Packaging Details:	Export Standard Packaging
Delivery Time:	5-7 work days after receiving deposit
Payment Terms:	Ex works
Supply Ability:	30000pcs/month

مخاطب

توضیحات محصول جزئیات

SAFETY STANDARDS:	UL879, UL8750, CSA C22.2 No. 207-M89, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13 approved	TEMP. COEFFICIENT:	±0.03%/℃ (0 ~ 50℃)
WORKING HUMIDITY:	20 ~ 95% RH non-condensing	VIBRATION:	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
WORKING TEMP.:	-30 ~ 70℃	WITHSTAND VOLTAGE:	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE:	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH	EMC EMISSION:	Compliance to EN55015, EN61000-3-2 Class C (≧75% load) ; EN61000-3-3
برجسته:	LED Light Power Supply,LED Light Driver , LED Light Driver

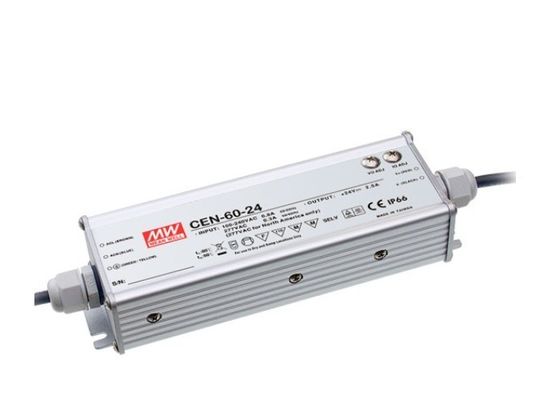

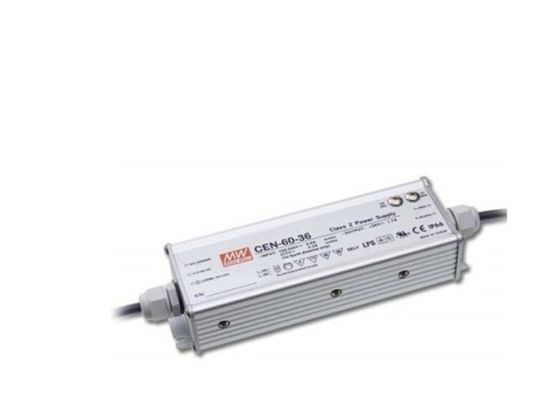

UL Constant Current LED Driver Waterproof 60W CEN-60-36 Outdoor

CEN Series Features (60~100W Single Output with PFC):

1. Universal AC input (up to 295VAC) / Full range
2. Protections: Short circuit / Over current / Over voltage / Over temperature
3. Built-in active PFC function
4. IP66 design
5. Meet 4kV surge immunity level (IEC61000-4-5)

6. Class 2 power unit / Pass LPS
7. Cooling by free air convection
8. Suitable for dry, damp, and wet location
9. Suitable for LED lighting and moving sign applications
10. 3 years warranty

CEN-60 Series Features:
1. Universal AC input / Full range (up to 295VAC)
2. Protections: Short circuit / Over current / Over voltage / Over temperature
3. Output voltage and constant current level adjustable
4. Built-in active PFC function
5. IP66 design for indoor or outdoor installations
6. Class 2 power unit
7. Cooling by free air convection
8. 100% full load burn-in test
9. High reliability
10. Suitable for LED lighting and moving sign applications
11. Compliance to worldwide safety regulations for lighting
12. Suitable for dry / damp / wet locations

13. 3 years warranty

CEN Series Power Supplies:

CEN-60 Series, CEN-75 Series, CEN-100 Series

Quick Details of CEN-60 LED Power Supply:

CEN-60 Series
Model No.	Output	Tol.	R&N	Effi.

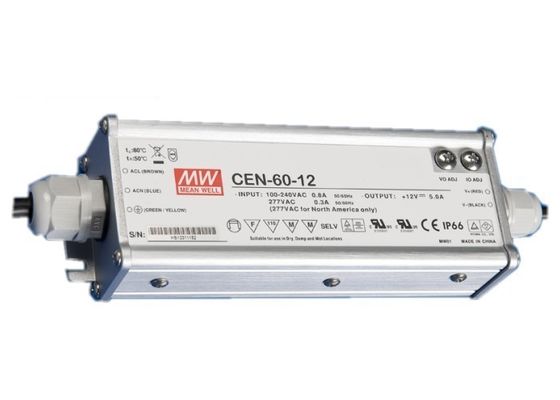

CEN-60-12	12V, 0~5.0A	±10%	2.0V	86%
CEN-60-15	15V, 0~4.0A	±10%	2.4V	87%
CEN-60-20	20V, 0~3.0A	±10%	1.8V	88%
CEN-60-24	24V, 0~2.5A	±10%	2.4V	89%
CEN-60-30	30V, 0~2.0A	±10%	3.0V	90%
CEN-60-36	36V, 0~1.7A	±10%	3.6V	90%
CEN-60-42	42V, 0~1.45A	±10%	4.0V	90%
CEN-60-48	48V, 0~1.3A	±10%	4.6V	91%
CEN-60-54	54V, 0~1.15A	±10%	5.0V	91%

Specifications of CEN-60:

Model No.		CEN-60
AC input voltage range		90~295VAC; 127~417VDC
AC inrush current (max.)		Cold start, 45A at 230VAC
DC adjustment range		±10% rated output voltage
Current adjustment range		75%~100%
Over current protection		95%~110% constant current limiting, auto-recovery
Over voltage protection		110%~140% rated output voltage
Over temp. protection		Shut down o/p voltage, re-power on to recover
Setup time		500ms at full load and 230VAC, no hold up time
Withstand voltage		I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature		-30~+70Celsius (refer to output derating curve)
Safety standards		UL8750, UL879 (except for CEN-100), TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved
EMC standards		EN55015, EN61000-3-2 class C , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection	Input	UL rated, SJTW 18AWGx3C (30cm)
	Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm)		185x 62.5x 40.5

NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Please refer to "DRIVING METHODS OF LED MODULE".
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains.

CEN-60 Series Datasheet:
