gaoxin بخش پارک صنعتی، GUANGMING جدید منطقه، شهر شنژن، استان گوانگدونگ، چین | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
نام تجاری: | DongDaHua |
گواهی: | CE&RoHS |
Model Number: | DDH-PLS30120-54 |
Minimum Order Quantity: | 1-100pcs |
---|---|
قیمت: | Get the latest price |
Packaging Details: | 4pcs/carton |
Delivery Time: | As per your quantity |
Payment Terms: | TT, L/C, west Union |
Supply Ability: | 5000pcs per week |
Application: | Bathroom, Bedroom | CRI: | 80Ra |
---|---|---|---|
Feature: | constant current driver, energy saving | Frequency Range: | 50HZ, 60HZ |
Installation: | Embedded | Life Span: | 50000 hours |
Light Source: | SMD3014 | Material: | aluminum alloy |

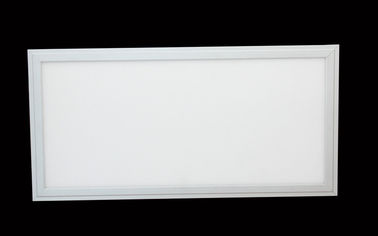

Power: | 54W | Product Name: | LED Panel Light |
برجسته: | SMD LED Panel Light,surface mounted led panel light,surface mounted led panel light |
Quick Detail:
1.Thickness: 11mm ,color temperature for optional
2.Long lifespan:≥50,000 hour
3.LED type: SMD 3014
4. 2 years warranty
5.CE RoHS approved
Dimension
Description:
Specifications:
Parameters |
|
Model: |
DDH-PLS30120-54 |
Power: |
54W |
Input Voltage: |
AC85~265V |
Output Voltage: |
DC30-40V |
Frequency Range |
50~60HZ |
Power Efficiency |
>85% |
Light Source: |
SMD3014 |
Lumen: |
3240-3960LM |
Color Temperature: |
2700-7000K |
Beam Angle: |
155° |
Installation |
Embedded / Mounting / Suspending |
Housing Color |
Sliver |
Color rendering index: |
Ra>80 |
Dimension: |
300x1200x11mm |
OperatingTemp: |
-20℃~55℃ |
Storage Temp: |
-25℃ ~ +65℃(25℃best) |
Life span |
50000 hours |
Net Weight |
4.6KG |
Certification |
CE&RoHS |
Emitting style: |
side emission |
Product materials: |
aluminum alloy +LGP+Import diffuser |
Drive type |
External isolation constant current power |
Installation
Competitive Advantage:
Health: Won't cause eye fatigue and helps to protect eye health.
Safety: Won't do harm to body with no harmful substances such as mercury and lead.
High quality: High power factor, constant voltage power supply and constant flux.
Installation flexibility: Easy to installe
Quality assurance
Our service
Delivery
After service
Applications:
Widely used in Airport, Bathroom, Bathroom Room, Bedroom, Cinema, Gallery, Hospital, Meeting Room, Office, School, Shopping Mall, Sitting Room and so on.
