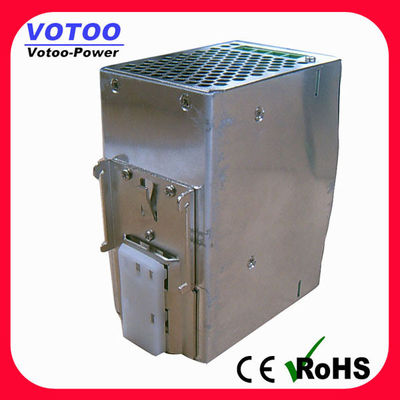

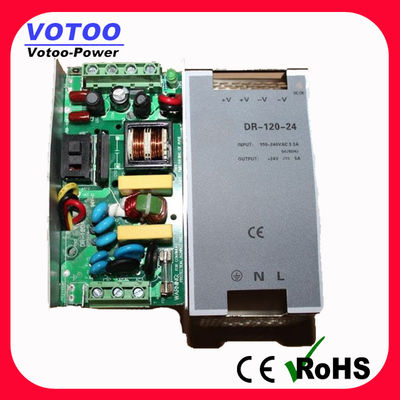

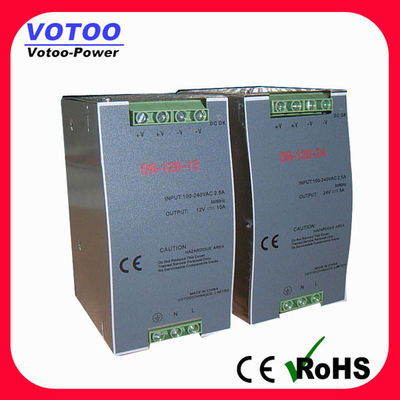

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply

Quick Detail:


1. 24V 5A din rail power supply
2. Model No. : DR-120-24
3. Type: switching power supply
4. Material: Metal
5. Package: white paper box
6. Warranty: 1 year
7. Certificate: CE & RoHS

Features:

o Universal Input 100~240VAC 50/60Hz

o Output Voltage: 24V

o Output Current:5A

o Power: 120Watt
o Ripple & Noise: 1% of Output Voltage

o High Efficiency

o Short Circuit Protection

o Over Voltage Protection

o Over Current Protection

o Green Circuit Design

Weight: 740g

o Dimensions: 145mm*125*85 mm



Specification:




How to Install?


1. Before connecting check whether the power supply fullfields electrical specification Connect
2. power supply to the supplied unit.
3. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
4. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
5. The powersupply should be installed in a location with good airflow.
6. Power supply can only be installed indoors.



Applications:

industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, leds bags, computer case, digital products and instruments, etc.
