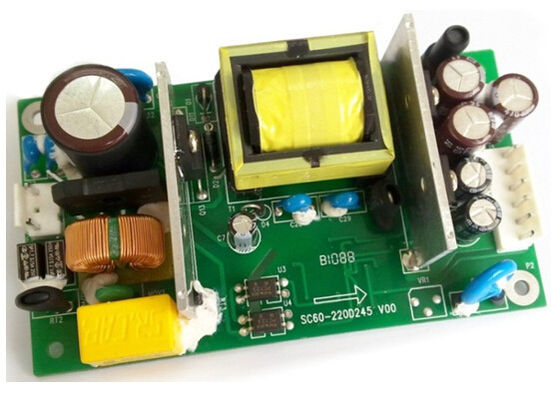

Medical Power Supply 60W Output 24VDC/2.4A,5VDC/0.5A SC60-220D245
Key Features
AC input range:90~264Vac
Dual outputs:24VDC/2.4A,5VDC/0.5A
High efficiency:86%
Line regulation:±1%
Load regulation:±1%
Low ripple&noise:≤200mV
short circuit protection
Output over current protection
Output over voltage protection
Output over short circuit protection
Over temperature protection
Natural cool
RoHS compliant
UL94V-0 flame-retarded rating
Fixed operation frequency
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Rated input voltage |
|
220 |
|
Vac |
|
AC input voltage range |
90 |
220 |
264 |
Vac |
|
AC input frequency range |
47 |
|
63 |
Hz |
|
Max. input current |
|
|
2 |
A |
Min. input voltage, full load |
Input inrush current |
|
|
60 |
A |
Max. input voltage,25℃, first start |
Efficiency |
82 |
86 |
|
% |
Rated input voltage, rated load |
The no-Load Power Loss |
|
0.5 |
|
W |
No-Load |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output voltage range |
24V |
23.76 |
24 |
24.24 |
Vdc |
|
5V |
4.95 |
5 |
5.05 |
Vdc |
|
|
Output current range |
24V |
0 |
|
2.4 |
A |
220Vac input,3.6A max for 8 seconds |
5V |
0 |
|
0.5 |
A |
|
|
voltage Regulation |
|
±1 |
|
% |
All iput range, full load |
|
Load Regulation |
|
±1 |
|
% |
Rated input,all load range |
|
Ripple & noise |
|
|
200 |
mV |
20 MHz bandwidth |
|
Dynamic response |
Deviation |
|
|
200 |
mV |
25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 0.1A/us or 2.5A/us |
Turn-on rise time |
|
|
50 |
ms |
Full load,10%~90% Vout |
|
Turn-0ff hold time |
10 |
|
|
ms |
220Vac, full load, from Vin turn-off to 90% Vout |
|
Output voltage overshoot |
|
|
1 |
% |
Full load |
|
Output Capacitance |
|
2200 |
|
μF |
|
|
Switching frequency |
|
65 |
|
KHz |
|
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output over voltage protection |
27 |
28 |
29 |
Vdc |
Lock-out,required to restart |
|
Output over load protection |
3.8 |
4 |
4.3 |
A |
Hiccup |
|
Short – Circuit Protection |
|
10 |
|
mΩ |
Hiccup |
|
Over-temperature protection |
Shutdown |
|
105 |
|
℃ |
Lock-out,required to restart |
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
50 |
|
|
KHrs |
TR-NWT-000332; 80% Iout max,300LFM, 40℃ Ta |
Weight |
|
160 |
|
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
0 |
|
70 |
℃ |
|
Storage temperature |
-40 |
|
75 |
℃ |
|
Relative humidity |
10 |
|
90 |
%R.H. |
|
Temperature Regulation |
|
|
±0.03 |
%/℃ |
|
Safety Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation voltage |
Input to output |
4000 |
|
|
Vac |
|
Input to ground |
1500 |
|
|
Vac |
||
Output to ground |
500 |
|
|
Vdc |
|
|
Isolation resistance |
Input to output |
10 |
|
|
MΩ |
500Vdc/1min, normal atmospheric pressure, 90% humidity |
Lightning Strike |
EN61000-4-5 |
|
|
|
|
|
Disturb |
EN61000-4-11 |
|
|
|
|
|
Surge |
EN61000-3-3 |
|
|
|
|
|
Harmonic Wave Current |
EN61000-3-2 |
|
|
|
10% THD |
Environmental Qualification
Parameter |
Notes |
Vibration |
Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis |
Mechanical Shock |
Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction |
Cold(in operation) |
IEC60068-2-1 Ad |
Damp heat |
IEC60068-2-67 Cy |
Temperature Cycling |
-20°C to 85°C, ramp 15°C/min., 500 cycles |
Power/Thermal Cycling |
Vin = min to max, full load, 100 cycles,five times/one minute |
Design Marginality |
T Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% Iout max |
Life Test |
Rated input,95%Iout max,25°C, >50000 hours |
Solder ability |
IEC60068-2-20 |
Standards compliance
Standards |
Notes |
UL60950-1 |
|
EN60950-1 |
|
EN60601-1 |
|
SCA 22.2NO.601.1 |
|
UL2601 |
|
CSA22.2NO.60950-1 |
|
Mechanical Outline
Length×width×heigth:114.5×63.5×30.8(mm), 4.51×2.5×1.21 (Inch),
Connector designations
|
1 |
2 |
3 |
4 |
5 |
6 |
J1 |
L |
NC |
N |
|
|
|
J3 |
+24Vdc |
+24Vdc |
GND |
GND |
+5Vdc |
NC |
