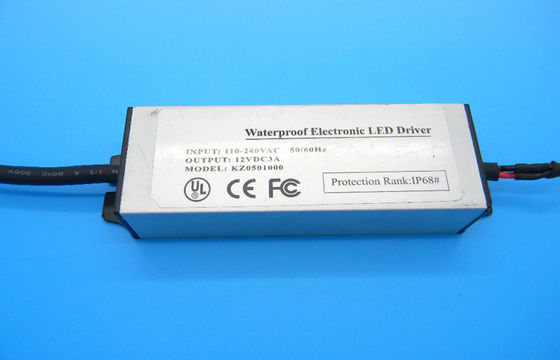

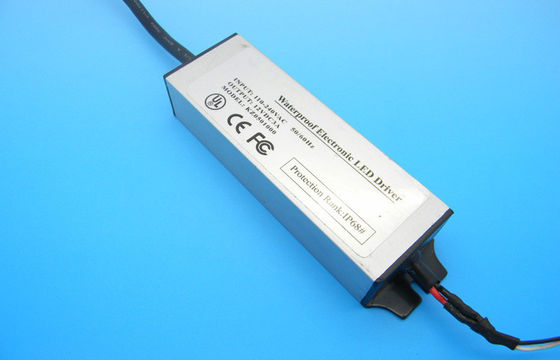

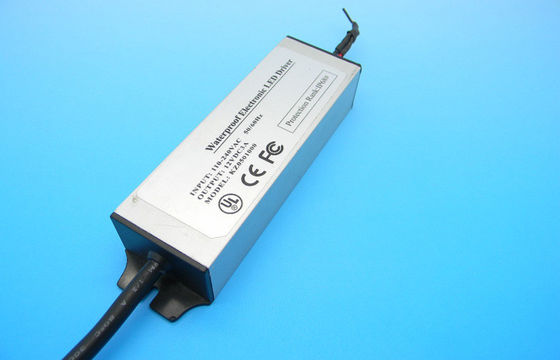

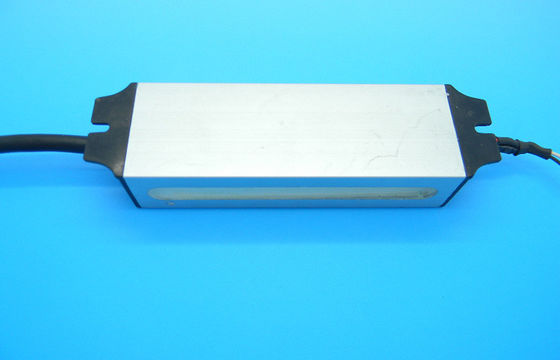

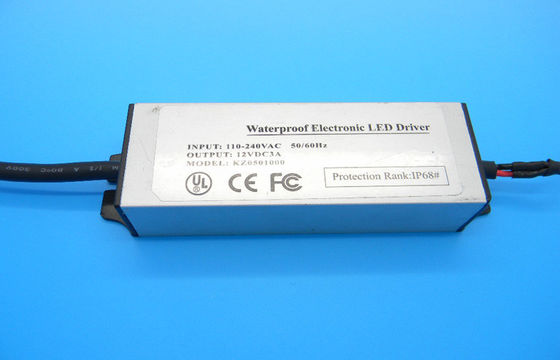

Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
Quick Detail:
Aluminum cased switching power supply, LED waterproof driver 36W. input voltage 100-240V, 47~63Hz,in conformity with CE, RoHS, FCC certification.
Specs:
Input: AC100-240V, 1.2A max.
Frequency: 47/63Hz
Output: DC12V, 3A
Water Resistance: IP68
Cable: 2X0.75mm2, 20cm length.
Inrush Current: Cold start current 60A at 240Vac.
Features:
- 2 years warranty
- High efficiency
- EMC standards PFC>0.95
- Full range 100~250VAC
- Protections: SCP, OPP, OVP, OTP, LDP
- IP68 design for indoor and outdoor application
- 100% burn-in tests, at full load
- Rated output can be customized
Approval: CE, RoHS, FCC
Warranty: 2 years
Description:
IP68 Waterproof LED driver for indoor and out door using, aluminum cased.
Note:
1) Please calculate the output power correctly, and do not make it work under over load circumstance, avoid to touch the case when using.
2) Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.
3) Please make sure correct wire connecting before using the power supply.
Applications:
1) LED accessories for Waterproof led flexible ribbon, led rigid bar, led strip lights etc.
2) This safety driver is good used with electronic equipment, IT equipment, small home appliance
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Power Factor
|
>0.95
|
|
Input AC Current
|
300mA
|
|
Inrush Current
|
Cold start 20A at100Vac, 60A at 240Vac.
|
|
Output
|
Rated Output Voltage
|
DC12V±5%
|
|
Rated Output Current
|
3A
|
|
Rated Power
|
36W
|
|
Ripple and Noise
|
200mV p-p
|
|
Turn-on
|
50ms @ full load(typical)
|
|
Hold-up
|
20ms @ full load(typical)
|
|
Over Voltage Protection
|
Yes, 105%--150%
|
|
Over Current Protection
|
Yes, 130%-150%
|
|
Short Circuit Protection
|
Hiccup type, automatically recover after short circuit remove.
|
|
Reliability
|
Hi-pot
|
3750Vac
|
|
Leakage Current
|
5mA/240VAC
|
|
Withstanding Voltage
|
I/P-O/P,I/P-FG: 3.75KVAC,O/P-FG:1.75KVAC,1 min
|
|
Insulation Resistance
|
Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ 25°C/70% RH
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 4 hours
|
|
Environmental
|
Operating Temperature
|
-10~60℃
|
|
Operating Humidity
|
10~90%
|
|
Storage Temperature
|
-20~85℃
|
|
Storage Humidity
|
0~95%
|
|
Safety Approvals
|
CE, RoHS,FCC
|
|
Warranty
|
2 Years
|
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man;
- High performance-to-price ratio;
- Perfect after-sale service.
