Place of Origin: | China |
نام تجاری: | Fiberroad |
گواهی: | CE ROHS |
Model Number: | FR-POE331 |
Minimum Order Quantity: | 1pcs |
---|---|
قیمت: | Pls send request details |
Packaging Details: | Standard neutral or brand packing |
Delivery Time: | 2-3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000pcs/Month |
Name: | POE Switch | Output Type:: | Single |
---|---|---|---|
Network Transfer Data Rate:: | 10/100/1000Mbps | Communication Mode:: | Full-Duplex & Half-Duplex |
Ports:: | 1 | Input Voltage:: | 220V |
برجسته: | poe powered switch,poe power over ethernet,poe power over ethernet |

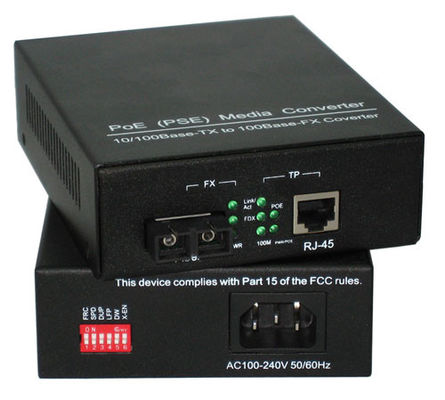

10M / 100M Power Over Ethernet PSE Media Converter Built In AC / DC Power Supply
-10/100Base-TX UTP to 100Base-FX fiber media convertion
-IEEE802.3af PoE PSE compatible
-9K bytes packet at cut-through mode
-Built-in AC/DC power supply
-Over-current protection
-choice of SC, BiDi or LC connectors for multimode and singlemode
-DIP switch to set different configurations
-LFP (Link Fault Pass-through) support
POE-FR200 is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Technical Specifications:
Data Rates:
- 10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)
- 100Mbps (100Base-FX)
Input Power Requirements:
- Input voltage ........................... 100 VAC to 240 VAC
- Input frequency ................................. 47 Hz to 63 Hz
Power over Ethernet Output:
- Pin Assignment and Polarity……...4/5 (V+), 7/8 (V-)
- Output Power…..please refer to ordering information
- Efficiency ....................................................75% min
- Short circuit protection........................ auto recovery
- Over current protection ....................... auto recovery
Environmental Conditions:
- Operating temperature ....................... …0℃ to 50℃
- Cooling ........................................ free air convection
- Storage temperature ...................... -20℃ to +85℃
- Operating Humidity …... 90% max, non-condensing
Mechanical Specifications:
- Case Material………………………………Iron
- Case Color………………………………….Black
- Net Weight…………………….540g approx. / unit
- Dimensions………110(W) x 40(H) x 140(L) (mm)
Do not include transceiver length
Connectors:
- AC Inlet……………………………………IEC-J-4
- LAN……………………………….Shielded RJ-45
- Fiber………………………………see ordering information
Ordering Information:
Part Number |
Supported Standard |
Output Voltage |
Output Current |
Output Power |
Remark |
POE-FR200-XX-XXX |
IEEE 802.3af |
48V |
0.54A max |
25W max |
default |
POE-FR200-AXX-XXX |
IEEE 802.3af |
56V |
0.54A max |
30W max |
optional |
POE-FR200-BXX-XXX |
Non-standard |
48V |
0.60A max |
30W max |
optional |
POE-FR200-CXX-XXX |
Non-standard |
24V |
1.20A max |
30W max |
optional |
*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below.
Suffix |
Description |
Suffix |
Description |
SC-M02 |
SC, Multi-Mode, 2km / 1300nm |
LC-M02 |
LC SFP, Multi-Mode, 2km / 1300nm |
SC-S05 |
SC, Single-Mode, 5km , 1310nm |
LC-S05 |
LC SFP, Single-Mode, 5km , 1310nm |
SC-S20 |
SC, Single-Mode, 20km , 1310nm |
LC-S20 |
LC SFP, Single-Mode, 20km , 1310nm |
SC-S40 |
SC, Single-Mode, 40km , 1310nm |
LC-S40 |
LC SFP, Single-Mode, 40km , 1310nm |
SC-S60 |
SC, Single-Mode, 60km , 1310nm |
BS3-S20 |
BiDi SC , Single-Mode, 20km , 1310/1550nm |
SC-S80 |
SC, Single-Mode, 80km , 1550nm |
BS3-S40 |
BiDi SC , Single-Mode, 40km , 1310/1550nm |
SC-SA0 |
SC, Single-Mode, 100km , 1550nm |
BS5-S20 |
BiDi SC , Single-Mode, 20km , 1550/1310nm |
SC-SC0 |
SC, Single-Mode, 120km , 1550nm |
BS5-S40 |
BiDi SC , Single-Mode, 40km , 1550/1310nm |
