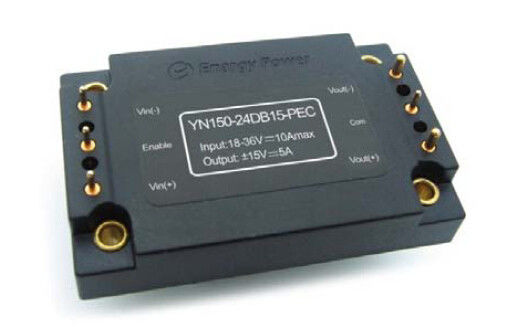

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC

  • Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC
Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC
جزئیات محصول:
Place of Origin: China
نام تجاری: Enargy
Model Number: YN150-24DB15-PEC
پرداخت:
Minimum Order Quantity: 1pcs
قیمت: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
مخاطب
توضیحات محصول جزئیات
برجسته:

isolated dc dc converter,high power dc dc converter

,

high power dc dc converter

DC-DC Converters 150W Output  15V YN150-24DB15-PEC



Key Features

Output power: 150W

Wide input range: 18-36Vdc

High conversion efficiency: Up to 91%

Line regulation to ±1%

Load regulation to ±1%

Isolation voltage :1500V

Enable (ON/OFF) control

Output Over-Current protection

Over-temperature protection

Input under-voltage lock-out



Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.



1. Electric Characteristics



1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





40

Vdc

Continuous, non-operating





38

Vdc

Continuous, operating





40

Vdc

Operating transient protection,<100mS

Isolation Voltage





2000

Vdc

Input to Output

Operating Temperature

-40



100

In view of PCB Temperature

Storage Temperature

-55



105



Enable to -Vin Voltage

-2



10

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input Voltage Range

18

24

36

Vdc



Under-Voltage Lockout



17.5

17.9

Vdc

Recovery point

15.5

16.5



Vdc

Protect point

Maximum Input Current





10

A

Vin min,Output full load

Efficiency

89





%

Rated input;Rated load

Dissipation,standby





12

W

No Load





1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

14.85

15

15.15

Vdc

+Vout

Rated input voltage,No load

-14.85

-15

-15.15

Vdc

-Vout

Output Voltage Range

14.55

15

15.45

Vdc

+Vout

Rated input voltage, load

-14.55

-15

-15.45

Vdc

-Vout

Output Current Range





5

A

+Vout

Two at the same time increase the load





5

A

-Vout

Line Regulation



±0.5

±1

%

+Vout

Two at the same time increase the load



±0.5

±1

%

-Vout

Load Regulation



±0.5

±1

%

+Vout

Two at the same time increase the load



±0.5

±1

%

-Vout

Output over-Current

protection

5.25

5.75

6.5

A

+Vout

95% of the rated output voltage,Load

5.25

5.75

6.5

A

-Vout

Short Circuit Current





7

A

+Vout

Two simultaneous short-circuit





7

A

-Vout

Ripple (RMS)



100



mV

+Vout

Nominal input; full load; 20 MHz

bandwidth.



100



mV

-Vout

Noise(Peak-to-Peak)



150



mV

+Vout



150



mV

-Vout

Capacitive load

from themachine

220



1800

μF

+Vout



220



1800

μF

-Vout



1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change In Output Current



480



mV

50% to 75% to 50% Iout max; (di/dt=

0.1A/μs)



600



mV

50% to 75% to 50% Iout max; (di/dt=

2.5A/μs)

Dynamic recovery time



300



μS



Turn-on Time



30



mS

Starting from vin to vout rise to 90%

Turn-off overshoot



5

5

mS





1.5 Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

187

230

255

KHz



Enable Current





10

mA



Enable (ON/OFF)

3.5



10

Vdc

ON-control, Logic high or floating

-0.5



0.5

Vdc

OFF-control, Logic low

Over-Load Protection

105

115

130

%

Current mode,Pulse current(100% rared load)

Short circuit protection





65

Hiccup mode,since the recovery

Over- Temperature Protection



105



Protect point,In view of PCB Temperature



90



Recovery point



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

Input to Base

500





Vdc

Output to Base

Isolation Resistance

100





At 500Vdc to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2. General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



2.8(80)



Oz (g)



MTBF ( calculated )

1





MHrs

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



100

base PCB temperature

Storage Temperature

-55



105

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.





4. Standards Compliance

Parameter

Notes

MIL-STD-704



MIL-STD-1399



MIL-STD-810



UL/cUL60950



EN60950



GB4943



IEC 61000-4-2





5. Typical Wave And Curves

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 0Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 1



Figure 1: Efficiency at nominal output voltage vs.
load current for minimum, nominal, and maximum
input voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and 60%
rated power vs. airflow rate for ambient air temperatures
of 25°C, 40°C, and 55°C (nominal input voltage).

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 2Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 3



Figure 3: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM through
400 LFM with air flowing from pin 3 to pin 1 (nominal input
voltage).

Figure 4: Output voltage ripple at nominal input
voltage and rated load current (20 mV/div). Load
capacitance: 0.1μF ceramic capacitor and 10μF tantalum
capacitor. Bandwidth: 20 MHz.

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 4Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 5



Figure 5: Thermal plot of converter at full load
current(150W) with 25°C air flowing at the rate of
200 LFM. Air is flowing across the converter from
pin 3 to pin 1 (Nominal input voltage).

Figure 6: Thermal plot of converter at full load
current(150W) with 25°C air flowing at the rate of
200 LFM. Air is flowing across the converter from
input to output (Nominal input voltage).

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 6Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 7

Figure 7: Turn-on transient at full load (resistive load)
(20ms/div).Input voltage pre-applied.
Ch1:Vout (10V/div);Ch2:ON/OFF Input (2V/div)

Figure 8: Shut-down fall time at full load (40 ms/div).
Ch1:Vout (10V/div);Ch2:ON/OFF Input (2V/div)

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 8Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 9

Figure 9: Output voltage response to step-change in
load current (50%-75%-50% of Iout(max); dI/dt =
0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum
capacitor and 1μF ceramic capacitor. Ch1: Vout+
(200mV/div),Ch2: Vout -(200mV/div)

Figure 10: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs).
Load cap: 10μF, 100 mW ESR tantalum capacitor and
0.1μF ceramic cap. Ch1: Vout+ (200mV/div),Ch2:
Vout-(200mV/div)



6. Physical Information


6.1 Mechanical Outline

Over-temperature protection DC-DC Converters module 18 - 36V dc YN150-24DB15-PEC 10

Notes:
1. Pins 4, 6 are 1.52mm dia. with 2.16mm dia.
2. Pins 1, 3 are 1.02mm dia. with 1.65mm dia.
3. Tolerances: x.x ±0.5mm.x.xx ±0.25mm



6.2 Pin Designations

Pin No.

Name

Function

1

Vin(+)

Positive input voltage

3

Enable

TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.

5

Vin(-)

Negative input voltage

6

Vout(-)

Negative output voltage

9

Com

Ground

10

Vout(+)

Positive output voltage
