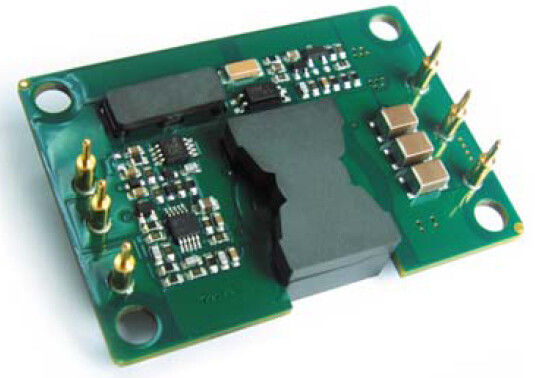

Converters 50W Output 28V XD50-24S28-POCW

Converters 50W Output 28V XD50-24S28-POCW

  • Converters 50W Output 28V XD50-24S28-POCW
Converters 50W Output 28V XD50-24S28-POCW
جزئیات محصول:
Place of Origin: China
نام تجاری: Enargy
Model Number: XD50-24S28-POCW
پرداخت:
Minimum Order Quantity: 1pcs
قیمت: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
مخاطب
توضیحات محصول جزئیات
برجسته:

isolated dc dc converter,high power dc dc converter

,

high power dc dc converter



DC-DC Converters 50W Output 25V XD50-24S28-POCW



Key Features

Output power: 50W

Wide input range: 20-60VDC

High conversion efficiency: Up to 93%

Line regulation to ±1%

Load regulation to ±1%

Fixed operating frequency

Isolation voltage :1,500V

Enable (ON/OFF) control

Output over-voltage protection

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±10% Vout



Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.



1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.

1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





72

Vdc

Continuous, non-operating





65

Vdc

Continuous, operating





72

Vdc

Operating transient protection,<100mS

Isolation voltage





2000

Vdc

Input to output

Operating Temperature

-55



100



Storage Temperature

-65



125



Enable to -Vin Voltage

-2.0



10

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

input voltage range

20

24

60

Vdc

Continuous

Under-Voltage Lockout

19.0

19.5

20.0

Vdc

Turn - On Threshold

18.0

18.5

19.0

Vdc

Turn - Off Threshold

Maximum Input Current





3.2

A

Full load;20Vdc Input

Efficiency



92



%

Figures 1-4

Dissipation



2.0

3.5

W

Min. load

Disabled Input Current





5

mA

Enable pin low

Recommend External Input

Capacitance



100



uF

Typical ESR 0.1-0.2W



1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

27.72

28.00

28.28

Vdc

Nominal input; No load

Output Voltage Range

27.60

28.00

28.40

Vdc



Output Current Range

0.1



1.8

A

Subject to thermal derating; Figures 5-8

Line Regulation



±0.2

±1

%

Low line to high line; full load

Load Regulation



±0.2

±1

%

No load to full load; nominal input

Temperature Regulation



±0.002

±0.02

% / °C

Over operating temperature range

Current limit



2.2



A

Output voltage 90% of nominal

Short circuit current

0

2.2

6

A

Output voltage <250 mV

Ripple (RMS)



15



mV

Nominal input; full load; 20 MHz

bandwidth; See Figure 13

Noise(Peak-to-Peak)



75



mV

Maximum Output Cap.





2200

μF

Nominal input; full load

Output Voltage Trim

-8



+10

%

Nominal input; full load



1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change in Output Current

(di/dt= 0.1A/us)



800



mV

50% to 75% to 50% Iout max; Figure 11

Change in Output Current

(di/dt= 2.5A/us)



820



mV

50% to 75% to 50% Iout max; Figure 12

Settling Time





300

uS

To within 1% Vout nom.

Turn-on Time



5



mS

Full load; Vout=90% nom. Figure 9

Shut-down fall time



2



mS

Full load; Vout=10% nom. Figure 10

Output voltage overshoot





5

%





1.5 Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

230

KHz

Regulation stage and Isolation stage

Trim(Pin6)

See part 7.2 Voltage Trim(Pin6)

Output Voltage Trim





10

%

Trim Up, Trim Pin to (-) Vout.





8

%

Trim Down, Trim Pin to (+) Vout.

Enable(ON/OFF)Control(Pin1)

See part 7.1

Enable Voltage

Enable Source Current





15

Vdc

Enable pin floating





1

mA



Enable (ON/OFF) control

Positive Logic

1.0



15

Vdc

ON-Control, Logic high or floating

-0.5



0.3

Vdc

OFF-Control, Logic low

Over-Voltage Protection



120



%



Over-Load Protection



120



%

Current-Mode, Pulse by Pulse Current

Limit Threshold,(%Rated Load)

Short-Circuit Protection





65

Type: Hiccup Mode, Non-Latching,

Auto-Recovery,Threshold,Short-Circuit

Resistance



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1,500





Vdc

Input to Base

500





Vdc

Input to Base

Isolation Resistance

10





At 500VDC to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2. General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



0.88(25)



Oz (g)

Open Frame

MTBF ( calculated )

1





MHrs1

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-55



+100

Extended, base PCB temperature

Storage Temperature

-55



+125

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.

Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter

Notes

UL/cUL60950



EN60950



GB4943



Needle Flame Test (IEC 695-2-2)

test on entire assembly; board & plastic components UL94V-0 compliant

IEC 61000-4-2





5. Qualification Specification

Parameter

Notes

Vibration

10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis

Mechanical Shock

100g min, 2 drops in x and y axis, 1 drop in z axis

Cold(in operation)

IEC60068-2-1 Ad

Damp heat

IEC60068-2-67 Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solderability

IEC60068-2-20





6. Typical Wave And Curves

Converters 50W Output 28V XD50-24S28-POCW 0Converters 50W Output 28V XD50-24S28-POCW 1

Figure 1: Efficiency at nominal output voltage vs. load
current for minimum, nominal, and maximum input voltage
at 25°C.

Figure 2: Efficiency at nominal output voltage and 60%
rated power vs. airflow rate for ambient air temperatures of
25°C, 40°C, and 55°C (nominal input voltage).



Converters 50W Output 28V XD50-24S28-POCW 2Converters 50W Output 28V XD50-24S28-POCW 3

Figure 3: Power dissipation at nominal output voltage vs.
load current for minimum, nominal, and maximum input
voltage at 25°C.

Figure 4: Power dissipation at nominal output voltage and
60% rated power vs. airflow rate for ambient air
temperatures of 25°C, 40°C, and 55°C (nominal input
voltage).



Converters 50W Output 28V XD50-24S28-POCW 4Converters 50W Output 28V XD50-24S28-POCW 5

Figure 5: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM through
400 LFM with air flowing from pin 1 to pin 3 (nominal input
voltage).

Figure 6: Thermal plot of converter at full load current
(50W) with 25°C air flowing at the rate of 200 LFM. Air is
flowing across the converter from pin 1 to pin 3 (nominal
input voltage).



Converters 50W Output 28V XD50-24S28-POCW 6Converters 50W Output 28V XD50-24S28-POCW 7

Figure 7: Maximum output power-derating curves vs.
ambient air temperature for airflow rates of 0 LFM through
400 LFM with air flowing from input to output (nominal
input voltage).

Figure 8: Thermal plot of converter at full load current
(50W) with 25°C air flowing at the rate of 200 LFM. Air is
flowing across the converter from input to output (nominal
input voltage).



Converters 50W Output 28V XD50-24S28-POCW 8Converters 50W Output 28V XD50-24S28-POCW 9

Figure 9: Turn-on transient at full load (resistive load) (10
ms/div).Input voltage pre-applied.
Ch 1: Vout (20V/div).Ch 2: ON/OFF input(500mV/div)

Figure 10: Shut-down fall time at full load (10 ms/div).
Ch 1: Vout (20V/div).Ch 2: ON/OFF input (500mV/div).



Converters 50W Output 28V XD50-24S28-POCW 10Converters 50W Output 28V XD50-24S28-POCW 11

Figure 11: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Load
cap: 10μF, 100 mΩ ESR tantalum capacitor and 1μF ceramic
capacitor. Ch 1: Vout (500mV/div).

Figure 12: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs). Load
cap: 470μF, 30 mΩ ESR tantalum capacitor and 1μF ceramic
cap. Ch 1: Vout (500mV/div).



Converters 50W Output 28V XD50-24S28-POCW 12

Figure 13: Output voltage ripple at nominal input voltage
and rated load current (20mV/div). Load capacitance: 1μF
ceramic capacitor and 10μF tantalum capacitor. Bandwidth:
20 MHz.



7. Function Specifications
7.1 Enable (ON/OFF) Control (Pin 1)

The Enable pin allows the power module to be switched on and off electronically. The Enable (On/Off) function is
useful for conserving battery power, for pulsed power application or for power up sequencing.
The Enable pin is referenced to the -Vin. It is pulled up internally, so no external voltage source is required. An open
collector (or open drain) switch is recommended for the control of the Enable pin.
When using the Enable pin, make sure that the reference is really the -Vin pin, not ahead of EMI filtering or
remotely from the unit. Optically coupling the control signal and locating the opto coupler directly at the module will
avoid any of these problems. If the Enable pin is not used, it can be left floating (positive logic) or connected to the -Vin
pin (negative logic).Figure A details five possible circuits for driving the ON/OFF pin. Figure B is a detailed look of
the internal ON/OFF circuitry.

Converters 50W Output 28V XD50-24S28-POCW 13Converters 50W Output 28V XD50-24S28-POCW 14



Figure A: Various circuits for driving the ON/OFF pin.

Figure B: Internal ON/OFF pin circuitry



7.2 Voltage Trim (Pin 6)
Output voltage can be adjusted up or down with an external resistor. There are positive trim logic and negative
trim logic available. For positive logic, the output voltage will increase when an external trimming resistor is connected
between the Trim and Com pin. The output voltage will decrease when an external trimming resistor is connected
between Trim and Vout(+) pin. A multi-turn 20Ký trim pot can also be used to adjust the output voltage up or
down.(Figure C & D).

Output Trim

Trim-Up

Trim Pin to Com

Trim-Down

Trim Pin to Vout(+)



Converters 50W Output 28V XD50-24S28-POCW 15Converters 50W Output 28V XD50-24S28-POCW 16



Figure C: Output-voltage Trim external circuit

Figure D: Trim Pot Connection.



7.3 Protection Features
·Input Under-Voltage Lockout: The converter is designed to turn off when the input voltage is too low, helping avoid
an input system instability problem, The lockout circuitry is a comparator with DC hysteresis. When the input voltage is
rising, it must exceed the typical Turn-On Voltage Threshold value(listed on the specification page) before the converter
will turn on. Once the converter is on, the input voltage must fall below the typical Turn-Off Voltage Threshold value
before the converter will turn off.
·Output Current Limit: The maximum current limit remains constant as the output voltage drops. However, once the
impedance of the short across the output is small enough to make the output voltage drop below the specified Output
DC Current-Limit Shutdown Voltage, the converter into hiccup mode indefinite short circuit protection state until the
short circuit condition is removed. This prevents excessive heating of the converter or the load board.
·Over-Temperature Shutdown: A temperature sensor on the converter senses the average temperature of the module.
The thermal shutdown circuit is designed to turn the converter off when the temperature at the sensed location reaches
the Over-Temperature Shutdown value. It will allow the converter to turn on again when the temperature of the sensed
location falls by the amount of the Over-Temperature Shutdown Restart Hysteresis value.
8. Typical Application and Design Consideration
8.1 Typical Application Circuit

Converters 50W Output 28V XD50-24S28-POCW 17

Figure E: Typical application circuit (negative logic unit, permanently enabled).



8.2 Input Filtering

DC-DC converters, by nature, generate significant
levels of both conducted and radiated noises. The
conducted noises included common mode and differential
mode noises. The common mode noise is directly related
to the effective parasitic capacitance between the power
module input conductors and chassis ground. The
differential mode noise is across the input conductors. It is
recommended to have some level of EMI suppression to
the power module.
Conducted noise on the input power lines can occur
as either differential or common-mode noise currents. The
required standard for conducted emissions is EN55022
Class A (FCC Part15). (Figure F)

Converters 50W Output 28V XD50-24S28-POCW 18



9. Test Method
9.1 Output Ripple & Noise Test

The output ripple is composed of fundamental frequency ripple and high frequency switching noise spikes. The
fundamental switching frequency ripple (or basic ripple) is in the 100KHz to 1MHz range; the high frequency switching
noise spike (or switching noise) is in the 10 MHz to 50MHz range. The switching noise is normally specified with 20
MHz bandwidth to include all significant harmonics for the noise spikes.
The easiest way to measure the output ripple and noise is to use an oscilloscope probe tip and ground ring pressed
directly against the power converter output pins, as shown below. This makes the shortest possible connection across
the output terminals. The oscilloscope probe ground clip should never be used in the ripple and noise measurement. The
ground clip will not only act as an antenna and pickup the radiated high frequency energy, but it will introduce the
common-mode noise to the measurement as well.
The standard test setup for ripple & noise measurements is shown in Figure G. A probe socket (Tektronix, P.N.
131.0258-00) is used for the measurements to eliminate noise pickup associated with long ground clip of scope probes.

Converters 50W Output 28V XD50-24S28-POCW 19



Figure G: Ripple & Noise Standard Testing Means.



10. Physical Information
10.1 Mechanical Outline

Converters 50W Output 28V XD50-24S28-POCW 20

Notes:
1. All pins are 0.040” (1.02mm) dia. with 0.09” (2.2mm) dia. standoff shoulders.
2. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm)
x.xxx ±0.010 in. (x.xx ±0.25mm)



10.2 Pin Designations

Pin No.

Name

Function

1

Enable

TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up.

2

Vin(-)

Negative input voltage

3

Vin(+)

Positive input voltage

4

Vout(+)

Positive output voltage

5

Com

Ground

6

Trim

Output voltage trim. Leave TRIM pin open for nominal output voltage.







اطلاعات تماس
Shenzhen YONP Power Co.,Ltd

تماس با شخص: Miss. Angel

تلفن: 1598940345

فکس: 86-755-3697544

ارسال درخواست خود را به طور مستقیم به ما (0 / 3000)

سایر محصولات
آداپتور AC جهانی قدرت

سیاه و سفید پلاستیکی 3FF میکرو به عادی سیم آداپتور، 500pcs در میکرو در یک پلی بگ

استاندارد پلاستیک ABS میکرو به عادی سیم آداپتور برای تلفن همراه

داغ فروش میکرو سیم به استاندارد سیم آداپتور برای موبایل عادی

سوئیچینگ آداپتورهای آنان

پلاستیک ABS نانو سیم آداپتور، آداپتور آیفون 4 نانو سیم کارت

سیاه و سفید آیفون 5 نانو سیم آداپتور با نانو 4FF - 3FF

منحصر به فرد از iPhone5 نانو سیم آداپتور پلاستیکی ABS نانو به سبد کوتاه

AC DC منبع تغذیه سوئیچینگ

4FF - 3FF سیم آداپتور، 500pcs در نانو برای میکرو سیم آداپتور در یک پلی بگ

پلاستیک ABS 3FF میکرو سیم آداپتور برای آیفون 4 یا آیفون 5

نانو پلاستیکی 2 در 1 دسته کوچک موسیقی جاز میکرو سیم آداپتور برای آیفون 5 1.2 X 0.9cm

درخواست نقل قول

E-Mail | نقشه سایت
