Military Power Supply 12 volt

Military Power Supply 12 volt

Military Power Supply 12 volt

جزئیات محصول:

Place of Origin: China
نام تجاری: Enargy
Model Number: MT13-24S24-PEM

پرداخت:

Minimum Order Quantity: 1pcs
قیمت: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
اکنون تماس بگیرید
توضیحات محصول جزئیات
برجسته:

military dc-dc converter

,

dc to dc converter module

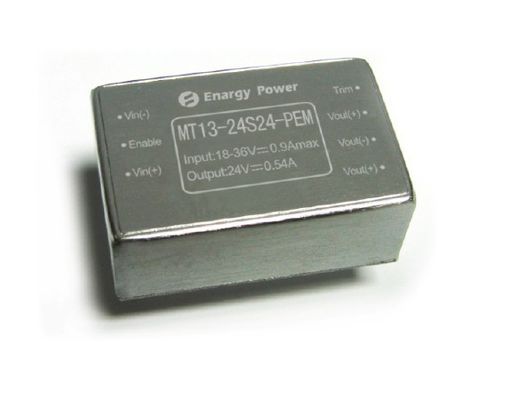

DC-DC Converters 13W Output 24V MT13-24S24-PEM





Key Features

Output power: 13W

Wide input range:18-36Vdc

High conversion efficiency: 89%

Line regulation to ±0.2%

Load regulation to ±1.0%

Isolation voltage :1,500V

Enable (ON/OFF) control

Output over-current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim -5~+10 % Vout



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.



1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     45 Vdc Continuous, non-operating
    36 Vdc Continuous, operating
    45 Vdc Operating transient protection,<100mS
Isolation voltage     1500 Vdc Input to output
Operating Temperature -55   100 In view of PCB Temperature
Storage Temperature -65   125
Enable to Vin- Voltage -0.5   10 Vdc


1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc
Under-Voltage Lockout   17 17.4 Vdc Recovery point
16 16.3   Vdc Protect point
Maximum Input Current     0.9 A Input Vin min,Output full load
Efficiency   88   % Rated Input;Rated Load
Dissipation,standby   0.5   W No Load



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set Point 23.85 24.00 24.15 Vdc Nominal input. No Load
Output Voltage Range 23.75 24.00 24.25 Vdc
Output Current Range 0   0.54 A
Line Regulation   ±0.02 ±0.50 %
Load Regulation   ±0.50 ±1.00 %
Current Limit 0.56 0.70   A Output voltage 95% of nominal
Short Circuit Current       A
Ripple (RMS)   40   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   80   mV
Maximum Output Cap     1000 μF



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   200   mV 50% to 75% to 50% Iout max; (di/dt=0.1A/μs).
  200   mV 50% to 75% to 50% Iout max; (di/dt=0.25A/μs).
Dynamic recovery time   220   µS
Turn-on Time   50   mS Starting from vin to vout rise to 90%
Turn-off overshoot     5 %



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 180 200 250 KHz
Output Voltage Trim     10 % Vout Trim Up
5     Trim Down
Enable Voltage     0.5 mA

Enable (ON/OFF) Control

Positive Logic

2.5   10 Vdc ON-Control, Logic high or floating
-0.5   1.5 Vdc OFF-Control, Logic low
Over-Load Protection       % Current mode,Pulsecurrent(100% raredload)
Short-Circuit Protection     100 mΩ Hiccup mode,since the recovery
Over-Temperature Protection   105   Type: Non-Latching, Auto-Recovery;Threshold, PCB Temperature
  90   Recovery point



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc In to base
500     Vdc Out to base
Isolation Resistance 100     MΩ At 500VDC to test it when atmosphericpressure and R.H. is 90%
Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   30   Oz (g)
MTBF ( calculated ) 1     MHrs TR-NWT-000332;80% load,300LFM, 40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -55   100 Base PCB temperature
Storage Temperature -65   125 Ambient temperature
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H.



4. Standards Compliance

Parameter Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
UL/cUL60950
EN60950
GB4943
IEC 61000-4-2



5. Typical Wave And Curves



Military Power Supply 12 volt 0   Military Power Supply 12 volt 1



Figure 1: Efficiency at nominal output voltage vs.load current for minimum, nominal, and maximuminput voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and60% rated power vs. airflow rate for ambient airtemperatures of 25°C.



Military Power Supply 12 volt 2   Military Power Supply 12 volt 3



Figure 3: Maximum output power derating curves vs.ambient air temperature for airflow rates of 0 LFM through400 LFM with air flowing from pin 3 to pin 1 (nominalinput voltage).

Figure 4: Output voltage ripple at nominal inputvoltage and rated load current (20 mV/div). Loadcapacitance: 0.1μF ceramic capacitor and 10μFtantalum capacitor. Bandwidth: 20 MHz.



Military Power Supply 12 volt 4



Figure 5: Ambient temperature is25 ℃, the load carried by the load(power 13W), the thermal imaging map.



Military Power Supply 12 volt 5   Military Power Supply 12 volt 6



Figure 6: Turn-on transient at full load (resistiveload) (200 ms/div).Input voltage pre-applied.Ch1:ON/OFF Input(2V/div);Ch2:Vout (5V/div)

Figure 7: Shut-down fall time at full load (2ms/div).Ch1:ON/OFF Input(2V/div);Ch2:Vout (5V/div)



Military Power Supply 12 volt 7    Military Power Supply 12 volt 8



Figure 8: Output voltage response to step-change inload current (50%-75%-50% of Iout(max); dI/dt =0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalumcapacitor and 1μF ceramic capacitor. Ch2:Vout(200mV/div)

Figure 9: Output voltage response to step-change inload current (50%-75%-50% of Iout(max): dI/dt =0.25A/μs). Load cap: 220μF, 30mΩ ESR tantalumcapacitor and 1μF ceramic cap. Ch2: Vout (200mV/div)



6. Physical Information

6.1 Mechanical Outline



Military Power Supply 12 volt 9



Notes:

1. All other pins are 0.6mm dia

2. Pin4 and Pin6 are parallel connection. The user could achieve the function Vout(+) whether connect either two pin orboth.

3. Tolerances: x.xx±0.02 in. (x.x±0.5mm).x.xxx±0.010 in. (x.xx±0.25mm)



6.2 Pin Designations

Pin No. Name Function
1 Vin(-) Negative Input voltage
2 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
3 Vin(+) Positive Input voltage
4 Vout(+) Positive Output Voltage
5 Vout(-) Negative Output Voltage
6 Vout(+) Positive Output Voltage
7 Trim Output Voltage Trim
