Place of Origin: | China |
نام تجاری: | KRIPAL |
گواهی: | CE |
Model Number: | UKS series |
Minimum Order Quantity: | 500pcs |
---|---|
قیمت: | negotiable |
Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 pcs per month |
Purpose: | Industrial | Ampere: | 16A,32A,63A, 125A |
---|---|---|---|
Voltage: | 220V-250V; 380V-415V | Protection grade: | IP44, IP67 |
Plastic materials: | Nylon, Rubbber | Metal: | Copper |
برجسته: | ,,32 Amp Industrial Socket |

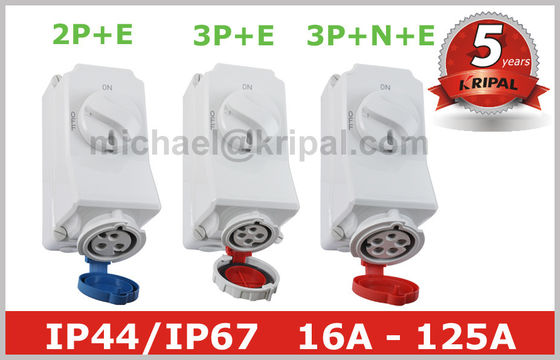

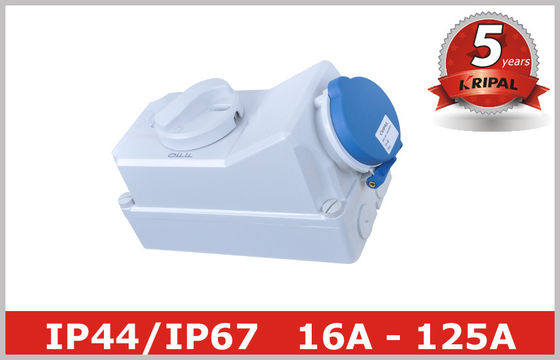

2P+E,3P+E,4P+N+E Mechanical Interlock Industrial Power Switched Sockets
KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.
After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.
Description:
1. Raw materials are of super brand like DSM, Mitsubishi
2. The mould tooling are built in our own die center with advanced machine by professionals
3. Latest design for amazing appearance and convenient plug-in & pull-out
4. Five years warranty: any faulty items will be replaced freely
5. Testing is proceeded in our lad regularly.
Specifications:
Product |
Mechanical Interlocked Switch Socket |
Rated Ampere |
16A, 32A, 63A, 126A |
No. of poles |
2P+E, 3P+E, 3P+N+E |
Voltage |
230V, 400V |
Protection degree |
IP44, IP67 |
Power type |
Single Phase, Three phase |
Conductor cross-sectional area (mm2) |
1.5-4(16A); 2.5-10(32A), 6-25(63A) |
Material |
NYLON PA6, PC, copper |
Color |
RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |

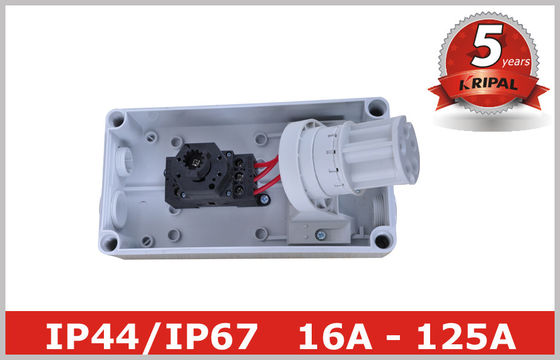

Construction Structure:
Mechanical interlock device inside
Articulated cover prevent dust and water
Compact design, cable entry hole from side or bottom
Quality brass one-piece, high conductivity
Semko certified UKP series switchgear mounted in box
Declaration:
KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.
Why not get goods from us directly?
